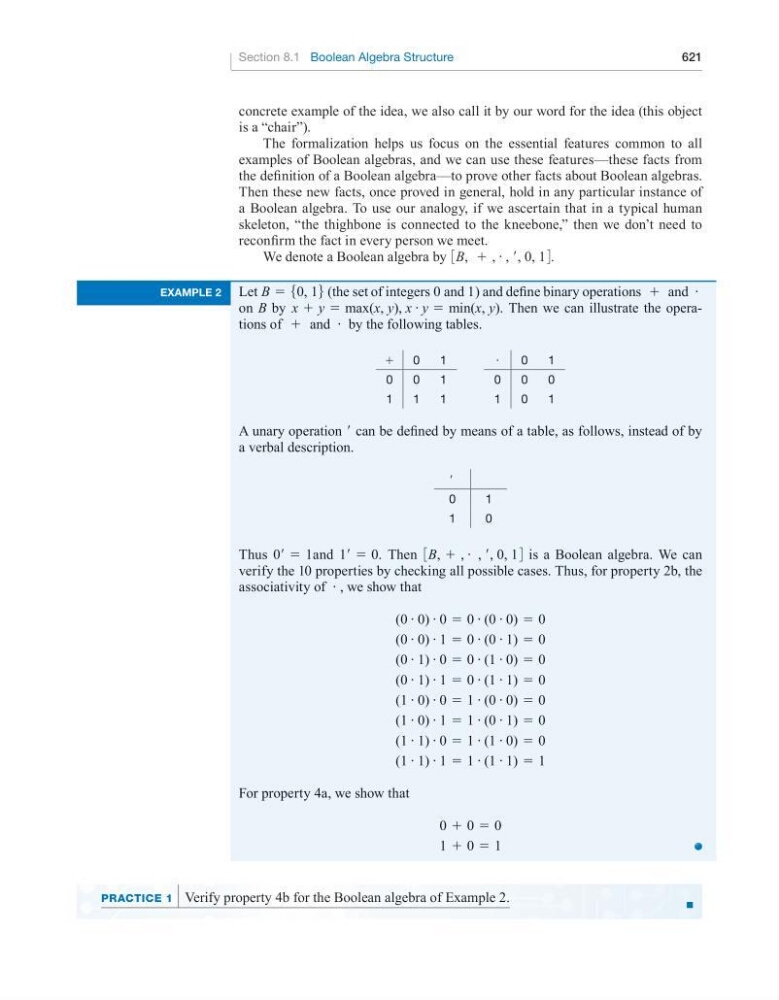

Section 8.1 Boolean Algebra Structure
621
concrete example of the idea, we also call it by our word for the idea (this object
is a “chair”).
The formalization helps us focus on the essential features common to all
examples of Boolean algebras, and we can use these features—these facts from
the definition of a Boolean algebra—to prove other facts about Boolean algebras.
Then these new facts, once proved in general, hold in any particular instance of
a Boolean algebra. To use our analogy, if we ascertain that in a typical human
skeleton, “the thighbone is connected to the kneebone,” then we don’t need to
reconfirm the fact in every person we meet.
We denote a Boolean algebra by 3B, + , # , ′, 0, 14.
example 2
Let B = 50, 16 (the set of integers 0 and 1) and define binary operations + and #
on B by x + y = max(x, y), x # y = min(x, y). Then we can illustrate the operations of + and # by the following tables.
+
0
1
#
0
1
0
0
1
0
0
0
1
1
1
1
0
1
A unary operation ′ can be defined by means of a table, as follows, instead of by
a verbal description.
′
0
1
1
0
Thus 0′ = 1and 1′ = 0. Then 3B, + , # , ′, 0, 14 is a Boolean algebra. We can
verify the 10 properties by checking all possible cases. Thus, for property 2b, the
associativity of # , we show that
(0 # 0) # 0 = 0 # (0 # 0) = 0
(0 # 0) # 1 = 0 # (0 # 1) = 0
(0 # 1) # 0 = 0 # (1 # 0) = 0
(0 # 1) # 1 = 0 # (1 # 1) = 0
(1 # 0) # 0 = 1 # (0 # 0) = 0
(1 # 0) # 1 = 1 # (0 # 1) = 0
(1 # 1) # 0 = 1 # (1 # 0) = 0
(1 # 1) # 1 = 1 # (1 # 1) = 1
For property 4a, we show that
0 + 0 = 0
1 + 0 = 1
■
PraCtiCe 1 Verify property 4b for the Boolean algebra of Example 2.
