Example 6.2
Given the fi rst-order analog HPF shown in the circuit diagram of Figure 6.31, evaluate
by hand the following:
a. The transfer function H(w) = V o (w)/V i (w)
b. Obtain expressions for ͉H(w)͉ and ∠H(w)
Create the script fi le HP_fi lter_analysis that returns the following plots:
c. ͉H(f)͉ versus f and ∠H(f ) versus f using the MATLAB function freqs
d. ͉H(f)͉ dB versus f and ∠H(f) versus f using a semilog scale and the MATLAB function
freqs
e. Bode of ͉H(w)͉ and ∠H(w) over the range −5 * (1/(R * C)) ≤ w ≤ 5 * (1/(R * C))
f. Bode of ͉H(w)͉ and ∠H(w) with no argument (w)
g. ͉H(f)͉ versus f
∠H(w) versus f
͉H(f)͉ dB versus f (semilog scale)
∠H(f) versus f (semilog scale)
using standard circuit techniques.

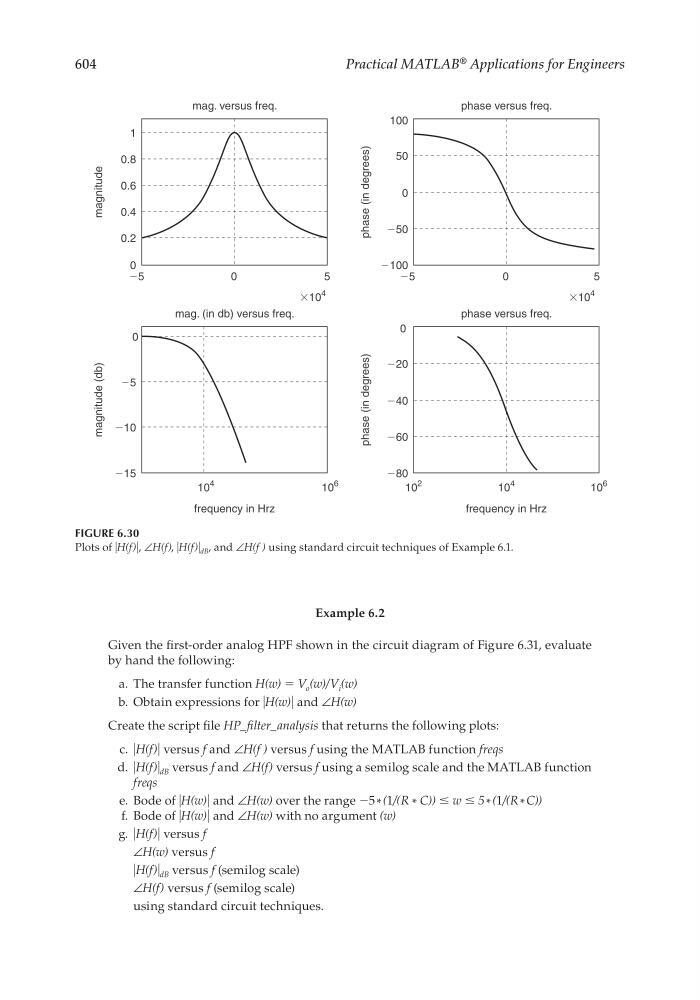

FIGURE 6.30
Plots of ͉H(f)͉, ∠H(f), ͉H(f)͉ dB , and ∠H(f ) using standard circuit techniques of Example 6.1.
