The int(exp(-2*t)^2*u(t)) from t=0 to inf is =
1/4
ans =
.25000000000000000000000000000000
*****************************************
*****************************************
The sym Fourier transform
of(exp(-2*t)*u(t)) is=
FT =
1/(2+i*w)
*****************************************
*****************************************
The sym Laplace transform
of(exp(-2*t)*u(t) is=
LT =
1/(s+2)
*****************************************
−2
−1.5
−1
−0.5
0
0.5
1
1.5
2
time (in sec)
−2
−1.5
−1
−0.5
0
0.5
1
1.5
2
time (in sec)
−0.5
0
0.5
1
−0.5
0
0.5
1
Amplitude
Amplitude
exp(-2*t)*u(t) versus t
[exp(-2*t)*u(t )] 2 versus t

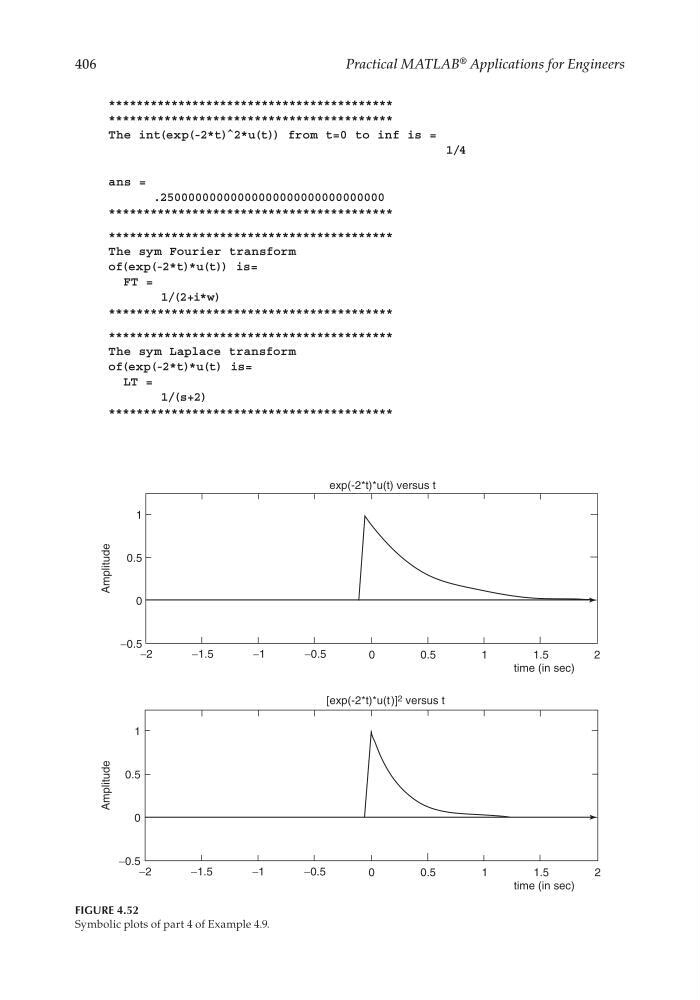

FIGURE 4.52
Symbolic plots of part 4 of Example 4.9.
