The script fi le RC_IC is executed, and the results and plots are shown as follows
(Figures 2.93 and 2.94):
>> RC _ IC
******************************************
********** R E S U L T S ****************
******************************************
The voltage across C, vc(t) for t >0 is:
vct =
20-10*exp(-1/2*t)
The voltage across R=2 ohms is :
vrt =
10*exp(-1/2*t)
The current i(t) is :
it =
5*exp(-1/2*t)
********Verify solution******************
verify = 2*diff(vct,t)+vct
verify =
20
******************************************

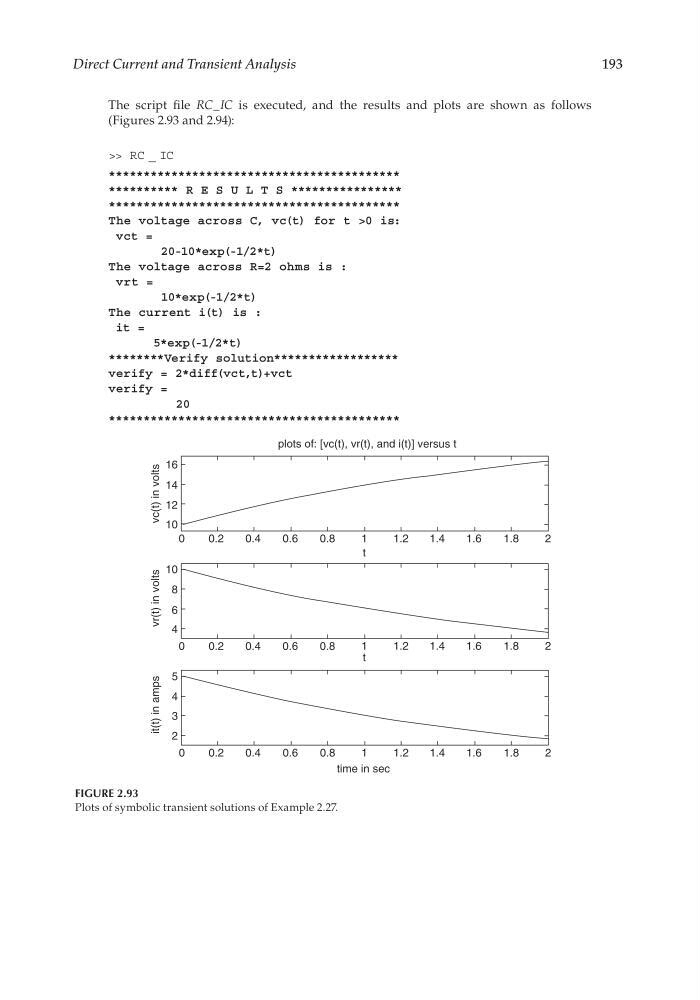

FIGURE 2.93
Plots of symbolic transient solutions of Example 2.27.
