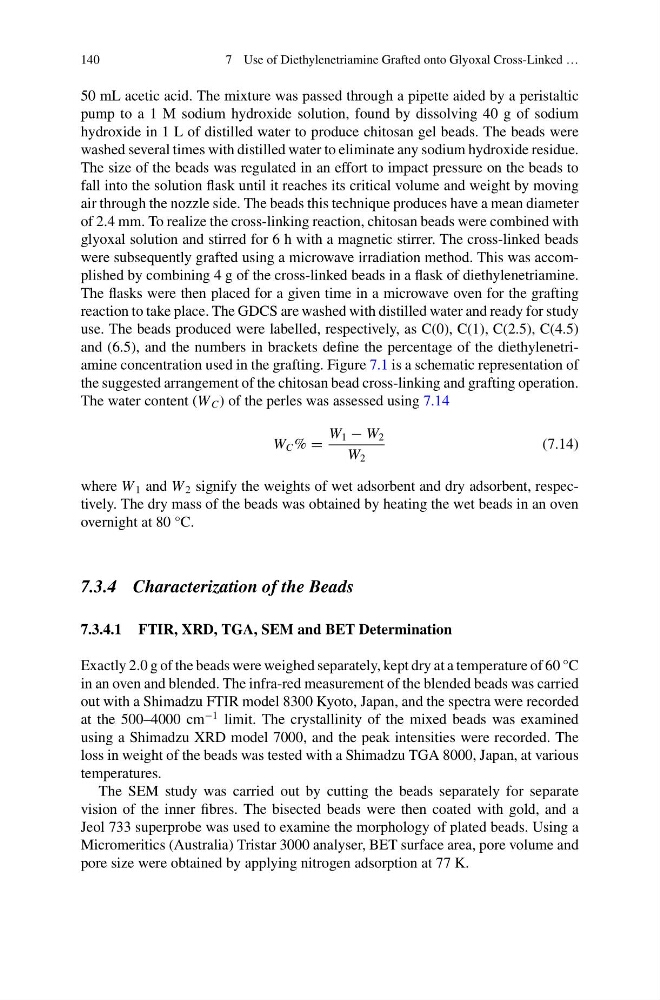

140
7 Use of Diethylenetriamine Grafted onto Glyoxal Cross-Linked …
50 mL acetic acid. The mixture was passed through a pipette aided by a peristaltic
pump to a 1 M sodium hydroxide solution, found by dissolving 40 g of sodium
hydroxide in 1 L of distilled water to produce chitosan gel beads. The beads were
washed several times with distilled water to eliminate any sodium hydroxide residue.
The size of the beads was regulated in an effort to impact pressure on the beads to
fall into the solution flask until it reaches its critical volume and weight by moving
air through the nozzle side. The beads this technique produces have a mean diameter
of 2.4 mm. To realize the cross-linking reaction, chitosan beads were combined with
glyoxal solution and stirred for 6 h with a magnetic stirrer. The cross-linked beads
were subsequently grafted using a microwave irradiation method. This was accomplished by combining 4 g of the cross-linked beads in a flask of diethylenetriamine.
The flasks were then placed for a given time in a microwave oven for the grafting
reaction to take place. The GDCS are washed with distilled water and ready for study
use. The beads produced were labelled, respectively, as C(0), C(1), C(2.5), C(4.5)
and (6.5), and the numbers in brackets define the percentage of the diethylenetriamine concentration used in the grafting. Figure 7.1 is a schematic representation of
the suggested arrangement of the chitosan bead cross-linking and grafting operation.
The water content (W C ) of the perles was assessed using 7.14
W C % =
W 1 − W 2
W 2
(7.14)
where W 1 and W 2 signify the weights of wet adsorbent and dry adsorbent, respectively. The dry mass of the beads was obtained by heating the wet beads in an oven
overnight at 80 °C.
7.3.4 Characterization of the Beads
7.3.4.1 FTIR, XRD, TGA, SEM and BET Determination
Exactly 2.0 g of the beads were weighed separately, kept dry at a temperature of 60 °C
in an oven and blended. The infra-red measurement of the blended beads was carried
out with a Shimadzu FTIR model 8300 Kyoto, Japan, and the spectra were recorded
at the 500–4000 cm
−1 limit. The crystallinity of the mixed beads was examined
using a Shimadzu XRD model 7000, and the peak intensities were recorded. The
loss in weight of the beads was tested with a Shimadzu TGA 8000, Japan, at various
temperatures.
The SEM study was carried out by cutting the beads separately for separate
vision of the inner fibres. The bisected beads were then coated with gold, and a
Jeol 733 superprobe was used to examine the morphology of plated beads. Using a
Micromeritics (Australia) Tristar 3000 analyser, BET surface area, pore volume and
pore size were obtained by applying nitrogen adsorption at 77 K.
7 Use of Diethylenetriamine Grafted onto Glyoxal Cross-Linked …
50 mL acetic acid. The mixture was passed through a pipette aided by a peristaltic
pump to a 1 M sodium hydroxide solution, found by dissolving 40 g of sodium
hydroxide in 1 L of distilled water to produce chitosan gel beads. The beads were
washed several times with distilled water to eliminate any sodium hydroxide residue.
The size of the beads was regulated in an effort to impact pressure on the beads to
fall into the solution flask until it reaches its critical volume and weight by moving
air through the nozzle side. The beads this technique produces have a mean diameter
of 2.4 mm. To realize the cross-linking reaction, chitosan beads were combined with
glyoxal solution and stirred for 6 h with a magnetic stirrer. The cross-linked beads
were subsequently grafted using a microwave irradiation method. This was accomplished by combining 4 g of the cross-linked beads in a flask of diethylenetriamine.
The flasks were then placed for a given time in a microwave oven for the grafting
reaction to take place. The GDCS are washed with distilled water and ready for study
use. The beads produced were labelled, respectively, as C(0), C(1), C(2.5), C(4.5)
and (6.5), and the numbers in brackets define the percentage of the diethylenetriamine concentration used in the grafting. Figure 7.1 is a schematic representation of
the suggested arrangement of the chitosan bead cross-linking and grafting operation.
The water content (W C ) of the perles was assessed using 7.14
W C % =
W 1 − W 2
W 2
(7.14)
where W 1 and W 2 signify the weights of wet adsorbent and dry adsorbent, respectively. The dry mass of the beads was obtained by heating the wet beads in an oven
overnight at 80 °C.
7.3.4 Characterization of the Beads
7.3.4.1 FTIR, XRD, TGA, SEM and BET Determination
Exactly 2.0 g of the beads were weighed separately, kept dry at a temperature of 60 °C
in an oven and blended. The infra-red measurement of the blended beads was carried
out with a Shimadzu FTIR model 8300 Kyoto, Japan, and the spectra were recorded
at the 500–4000 cm
−1 limit. The crystallinity of the mixed beads was examined
using a Shimadzu XRD model 7000, and the peak intensities were recorded. The
loss in weight of the beads was tested with a Shimadzu TGA 8000, Japan, at various
temperatures.
The SEM study was carried out by cutting the beads separately for separate
vision of the inner fibres. The bisected beads were then coated with gold, and a
Jeol 733 superprobe was used to examine the morphology of plated beads. Using a
Micromeritics (Australia) Tristar 3000 analyser, BET surface area, pore volume and
pore size were obtained by applying nitrogen adsorption at 77 K.
