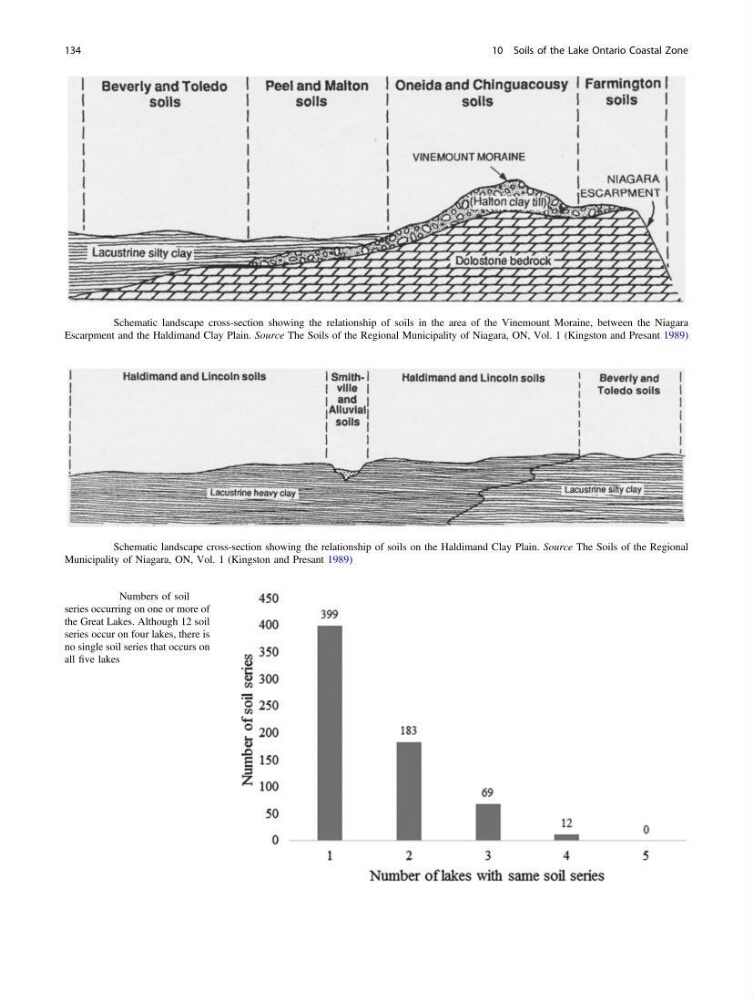

Fig. 10.8 Schematic landscape cross-section showing the relationship of soils in the area of the Vinemount Moraine, between the Niagara
Escarpment and the Haldimand Clay Plain. Source The Soils of the Regional Municipality of Niagara, ON, Vol. 1 (Kingston and Presant 1989)
Fig. 10.9 Schematic landscape cross-section showing the relationship of soils on the Haldimand Clay Plain. Source The Soils of the Regional
Municipality of Niagara, ON, Vol. 1 (Kingston and Presant 1989)
Fig. 10.10 Numbers of soil
series occurring on one or more of
the Great Lakes. Although 12 soil
series occur on four lakes, there is
no single soil series that occurs on
all five lakes
