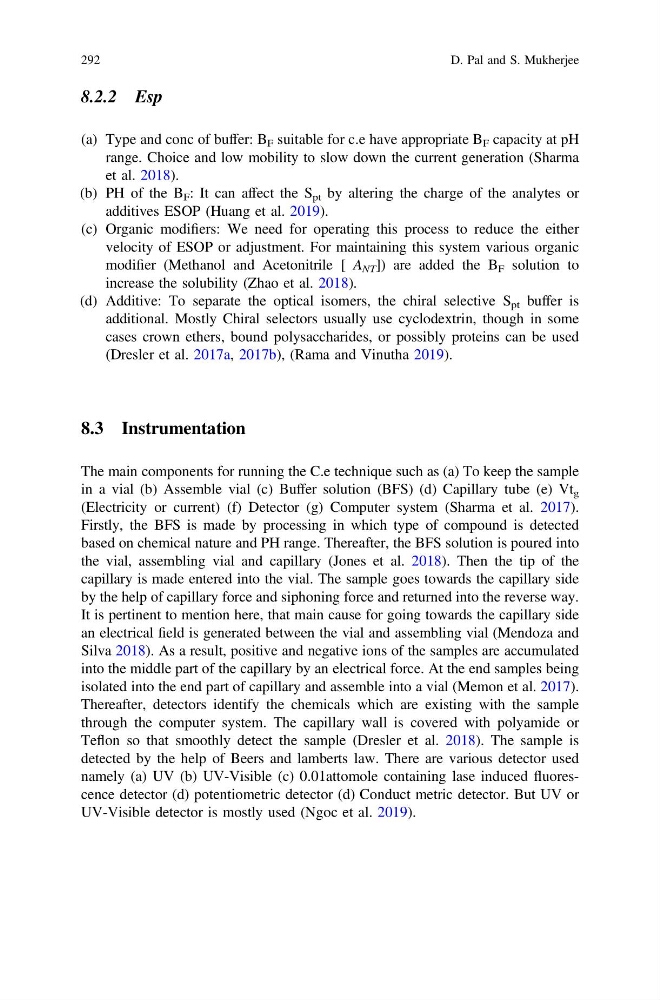

8.2.2 Esp
(a) Type and conc of buffer: B F suitable for c.e have appropriate B F capacity at pH
range. Choice and low mobility to slow down the current generation (Sharma
et al. 2018).
(b) PH of the B F : It can affect the S pt by altering the charge of the analytes or
additives ESOP (Huang et al. 2019).
(c) Organic modifiers: We need for operating this process to reduce the either
velocity of ESOP or adjustment. For maintaining this system various organic
modifier (Methanol and Acetonitrile [ A NT ]) are added the B F solution to
increase the solubility (Zhao et al. 2018).
(d) Additive: To separate the optical isomers, the chiral selective S pt buffer is
additional. Mostly Chiral selectors usually use cyclodextrin, though in some
cases crown ethers, bound polysaccharides, or possibly proteins can be used
(Dresler et al. 2017a, 2017b), (Rama and Vinutha 2019).
8.3 Instrumentation
The main components for running the C.e technique such as (a) To keep the sample
in a vial (b) Assemble vial (c) Buffer solution (BFS) (d) Capillary tube (e) Vt g
(Electricity or current) (f) Detector (g) Computer system (Sharma et al. 2017).
Firstly, the BFS is made by processing in which type of compound is detected
based on chemical nature and PH range. Thereafter, the BFS solution is poured into
the vial, assembling vial and capillary (Jones et al. 2018). Then the tip of the
capillary is made entered into the vial. The sample goes towards the capillary side
by the help of capillary force and siphoning force and returned into the reverse way.
It is pertinent to mention here, that main cause for going towards the capillary side
an electrical field is generated between the vial and assembling vial (Mendoza and
Silva 2018). As a result, positive and negative ions of the samples are accumulated
into the middle part of the capillary by an electrical force. At the end samples being
isolated into the end part of capillary and assemble into a vial (Memon et al. 2017).
Thereafter, detectors identify the chemicals which are existing with the sample
through the computer system. The capillary wall is covered with polyamide or
Teflon so that smoothly detect the sample (Dresler et al. 2018). The sample is
detected by the help of Beers and lamberts law. There are various detector used
namely (a) UV (b) UV-Visible (c) 0.01attomole containing lase induced fluorescence detector (d) potentiometric detector (d) Conduct metric detector. But UV or
UV-Visible detector is mostly used (Ngoc et al. 2019).
