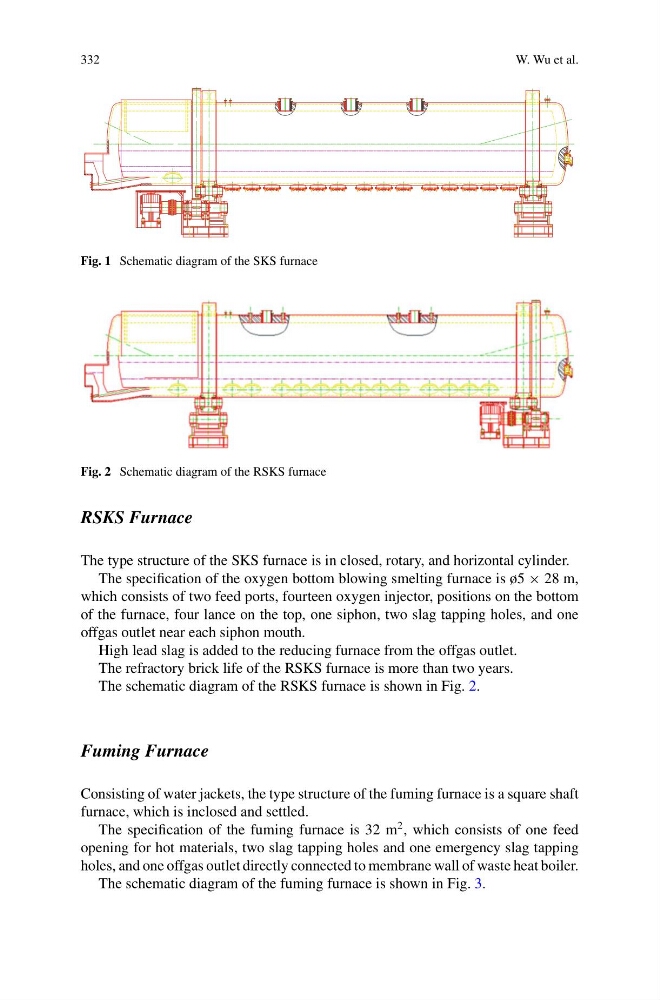

Fig. 1 Schematic diagram of the SKS furnace
Fig. 2 Schematic diagram of the RSKS furnace
RSKS Furnace
The type structure of the SKS furnace is in closed, rotary, and horizontal cylinder.
The specification of the oxygen bottom blowing smelting furnace is ø5 × 28 m,
which consists of two feed ports, fourteen oxygen injector, positions on the bottom
of the furnace, four lance on the top, one siphon, two slag tapping holes, and one
offgas outlet near each siphon mouth.
High lead slag is added to the reducing furnace from the offgas outlet.
The refractory brick life of the RSKS furnace is more than two years.
The schematic diagram of the RSKS furnace is shown in Fig. 2.
Fuming Furnace
Consisting of water jackets, the type structure of the fuming furnace is a square shaft
furnace, which is inclosed and settled.
The specification of the fuming furnace is 32 m
2 , which consists of one feed
opening for hot materials, two slag tapping holes and one emergency slag tapping
holes, and one offgas outlet directly connected to membrane wall of waste heat boiler.
The schematic diagram of the fuming furnace is shown in Fig. 3.
