Three-Dimensional Integration of Network-on-Chip

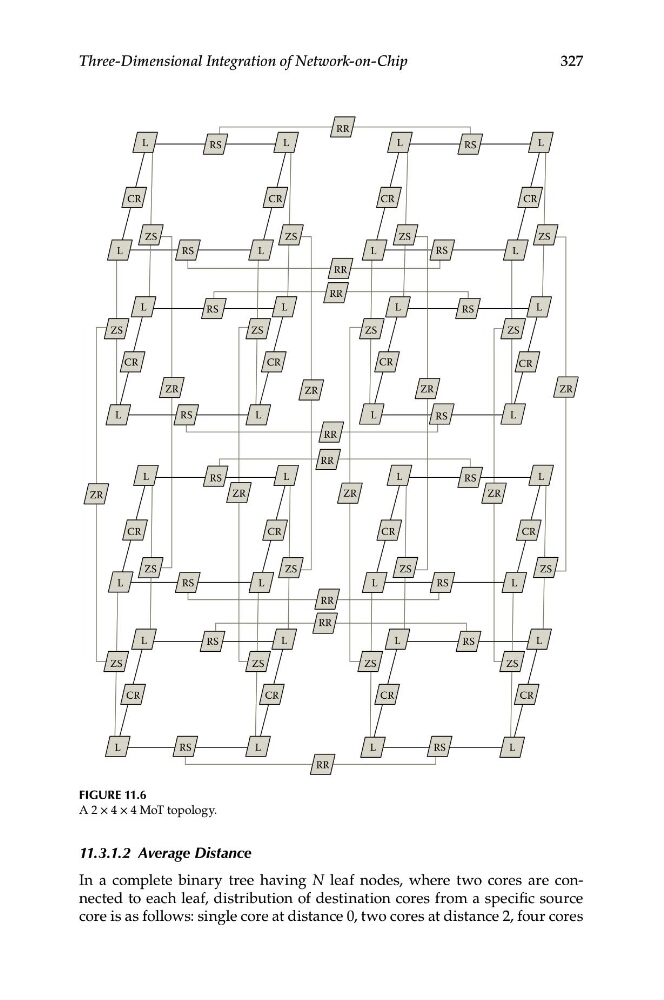

Figure 11.6
A 2 × 4 × 4 MoT topology.
11.3.1.2 Average Distance
In a complete binary tree having N leaf nodes, where two cores are connected to each leaf, distribution of destination cores from a specific source
core is as follows: single core at distance 0, two cores at distance 2, four cores
