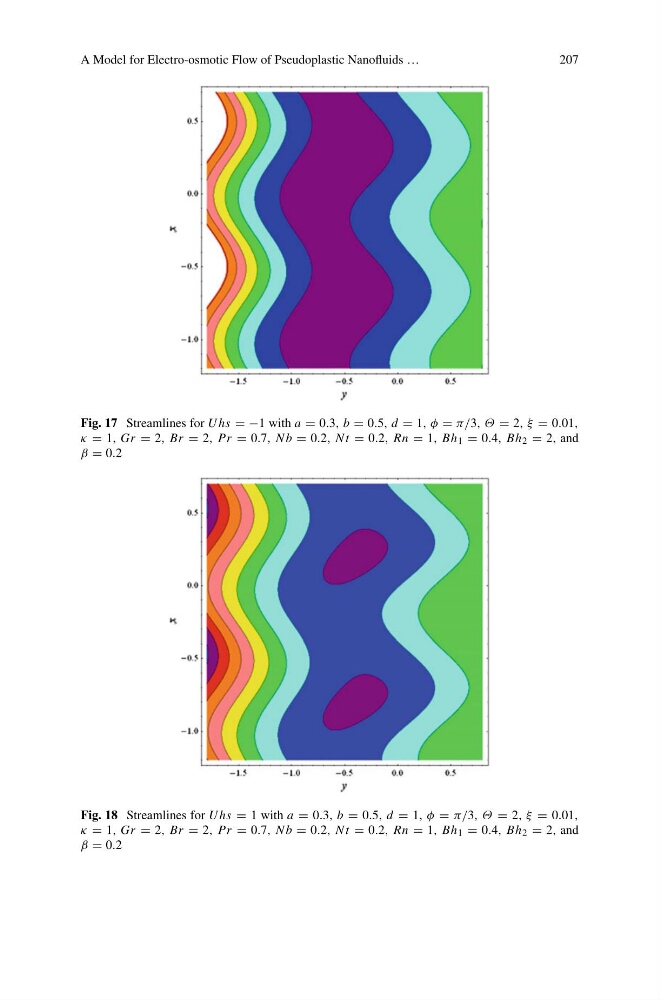

Fig. 17 Streamlines for U hs = −1 with a = 0.3, b = 0.5, d = 1, φ = π/3, Θ = 2, ξ = 0.01,
κ = 1, Gr = 2, Br = 2, Pr = 0.7, N b = 0.2, N t = 0.2, Rn = 1, Bh 1 = 0.4, Bh 2 = 2, and
β = 0.2
Fig. 18 Streamlines for U hs = 1 with a = 0.3, b = 0.5, d = 1, φ = π/3, Θ = 2, ξ = 0.01,
κ = 1, Gr = 2, Br = 2, Pr = 0.7, N b = 0.2, N t = 0.2, Rn = 1, Bh 1 = 0.4, Bh 2 = 2, and
β = 0.2
