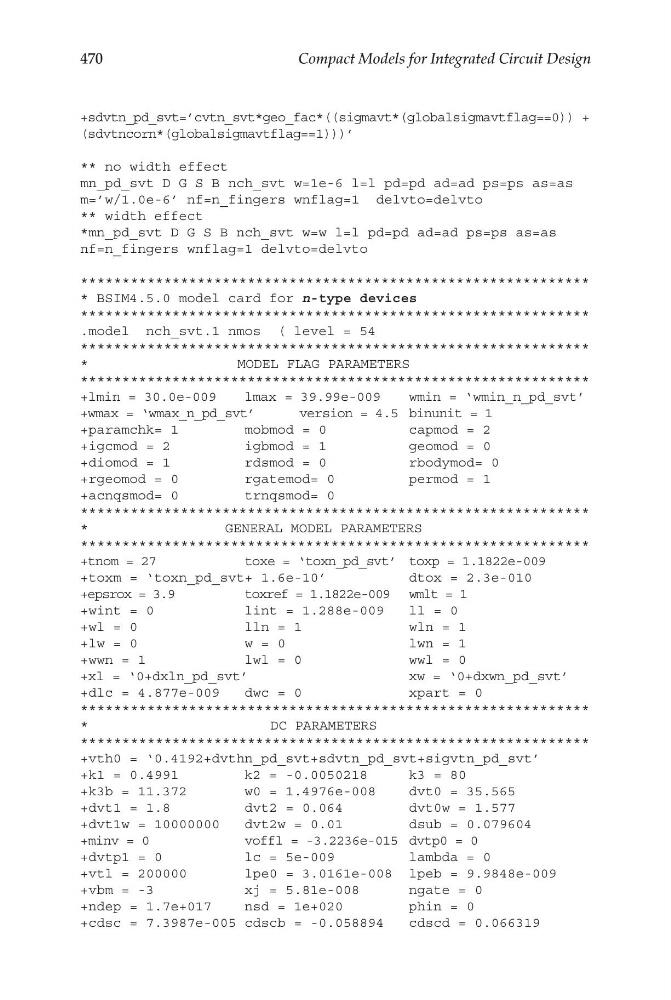

470
Compact Models for Integrated Circuit Design
+sdvtn_pd_svt=’cvtn_svt*geo_fac*((sigmavt*(globalsigmavtflag==0)) +
(sdvtncorn*(globalsigmavtflag==1)))’
** no width effect
mn_pd_svt D G S B nch_svt w=1e-6 l=l pd=pd ad=ad ps=ps as=as
m=’w/1.0e-6’ nf=n_fingers wnflag=1 delvto=delvto
** width effect
*mn_pd_svt D G S B nch_svt w=w l=l pd=pd ad=ad ps=ps as=as
nf=n_fingers wnflag=1 delvto=delvto
*************************************************************
* BSIM4.5.0 model card for n-type devices
*************************************************************
.model nch_svt.1 nmos ( level = 54
*************************************************************
*
MODEL FLAG PARAMETERS
*************************************************************
+lmin = 30.0e-009
lmax = 39.99e-009
wmin = ‘wmin_n_pd_svt’
+wmax = ‘wmax_n_pd_svt’
version = 4.5 binunit = 1
+paramchk= 1
mobmod = 0
capmod = 2
+igcmod = 2
igbmod = 1
geomod = 0
+diomod = 1
rdsmod = 0
rbodymod= 0
+rgeomod = 0
rgatemod= 0
permod = 1
+acnqsmod= 0
trnqsmod= 0
*************************************************************
*
GENERAL MODEL PARAMETERS
*************************************************************
+tnom = 27
toxe = ‘toxn_pd_svt’ toxp = 1.1822e-009
+toxm = ‘toxn_pd_svt+ 1.6e-10’
dtox = 2.3e-010
+epsrox = 3.9
toxref = 1.1822e-009 wmlt = 1
+wint = 0
lint = 1.288e-009
ll = 0
+wl = 0
lln = 1
wln = 1
+lw = 0
w = 0
lwn = 1
+wwn = 1
lwl = 0
wwl = 0
+xl = ‘0+dxln_pd_svt’
xw = ‘0+dxwn_pd_svt’
+dlc = 4.877e-009
dwc = 0
xpart = 0
*************************************************************
*
DC PARAMETERS
*************************************************************
+vth0 = ‘0.4192+dvthn_pd_svt+sdvtn_pd_svt+sigvtn_pd_svt’
+k1 = 0.4991
k2 = -0.0050218
k3 = 80
+k3b = 11.372
w0 = 1.4976e-008
dvt0 = 35.565
+dvt1 = 1.8
dvt2 = 0.064
dvt0w = 1.577
+dvt1w = 10000000
dvt2w = 0.01
dsub = 0.079604
+minv = 0
voffl = -3.2236e-015 dvtp0 = 0
+dvtp1 = 0
lc = 5e-009
lambda = 0
+vtl = 200000
lpe0 = 3.0161e-008 lpeb = 9.9848e-009
+vbm = -3
xj = 5.81e-008
ngate = 0
+ndep = 1.7e+017
nsd = 1e+020
phin = 0
+cdsc = 7.3987e-005 cdscb = -0.058894
cdscd = 0.066319
