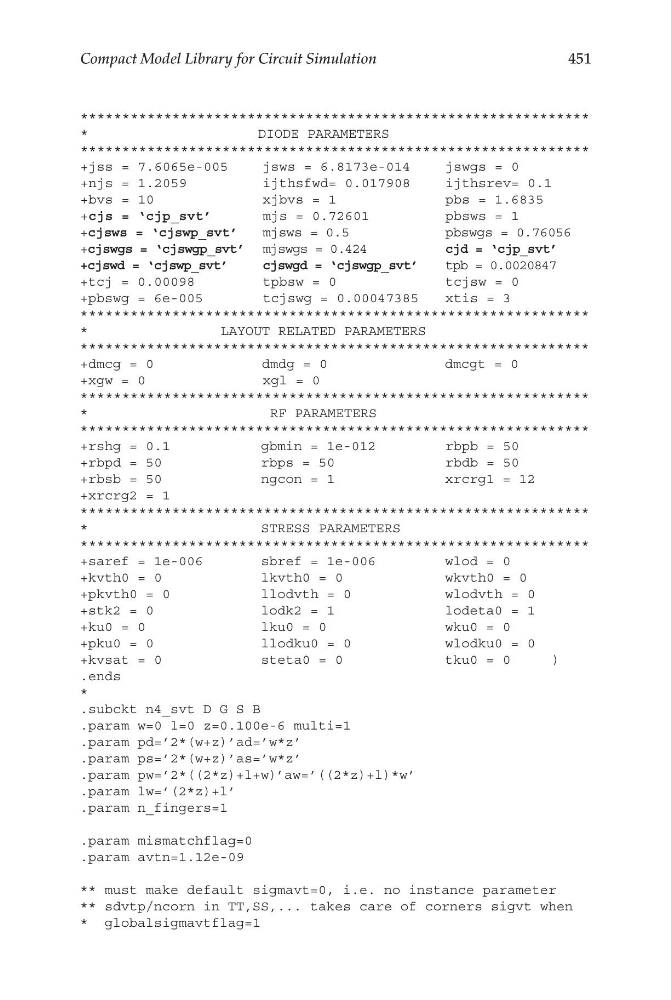

DIODE PARAMETERS
*************************************************************
+jss = 7.6065e-005
jsws = 6.8173e-014
jswgs = 0
+njs = 1.2059
ijthsfwd= 0.017908
ijthsrev= 0.1
+bvs = 10
xjbvs = 1
pbs = 1.6835
+cjs = ‘cjp_svt’
mjs = 0.72601
pbsws = 1
+cjsws = ‘cjswp_svt’
mjsws = 0.5
pbswgs = 0.76056
+cjswgs = ‘cjswgp_svt’ mjswgs = 0.424
cjd = ‘cjp_svt’
+cjswd = ‘cjswp_svt’
cjswgd = ‘cjswgp_svt’
tpb = 0.0020847
+tcj = 0.00098
tpbsw = 0
tcjsw = 0
+pbswg = 6e-005
tcjswg = 0.00047385
xtis = 3
*************************************************************
*
LAYOUT RELATED PARAMETERS
*************************************************************
+dmcg = 0
dmdg = 0
dmcgt = 0
+xgw = 0
xgl = 0
*************************************************************
*
RF PARAMETERS
*************************************************************
+rshg = 0.1
gbmin = 1e-012
rbpb = 50
+rbpd = 50
rbps = 50
rbdb = 50
+rbsb = 50
ngcon = 1
xrcrg1 = 12
+xrcrg2 = 1
*************************************************************
*
STRESS PARAMETERS
*************************************************************
+saref = 1e-006
sbref = 1e-006
wlod = 0
+kvth0 = 0
lkvth0 = 0
wkvth0 = 0
+pkvth0 = 0
llodvth = 0
wlodvth = 0
+stk2 = 0
lodk2 = 1
lodeta0 = 1
+ku0 = 0
lku0 = 0
wku0 = 0
+pku0 = 0
llodku0 = 0
wlodku0 = 0
+kvsat = 0
steta0 = 0
tku0 = 0
)
.ends
*
.subckt n4_svt D G S B
.param w=0 l=0 z=0.100e-6 multi=1
.param pd=’2*(w+z)’ad=’w*z’
.param ps=’2*(w+z)’as=’w*z’
.param pw=’2*((2*z)+l+w)’aw=’((2*z)+l)*w’
.param lw=’(2*z)+l’
.param n_fingers=1
.param mismatchflag=0
.param avtn=1.12e-09
** must make default sigmavt=0, i.e. no instance parameter
** sdvtp/ncorn in TT,SS,... takes care of corners sigvt when
* globalsigmavtflag=1
