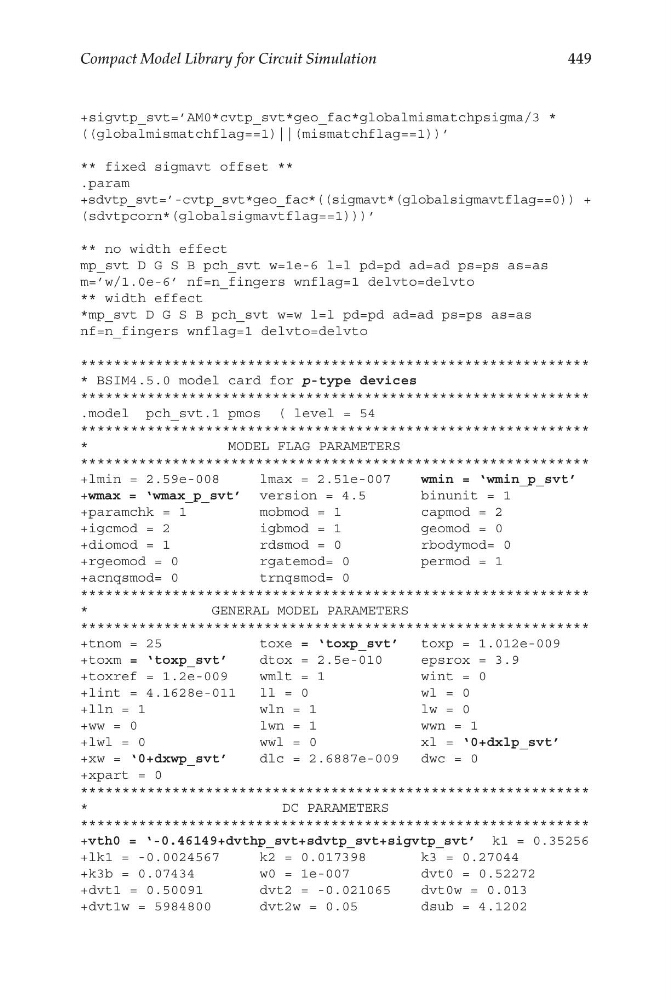

Compact Model Library for Circuit Simulation
+sigvtp_svt=’AM0*cvtp_svt*geo_fac*globalmismatchpsigma/3 *
((globalmismatchflag==1)||(mismatchflag==1))’
** fixed sigmavt offset **
.param
+sdvtp_svt=’-cvtp_svt*geo_fac*((sigmavt*(globalsigmavtflag==0)) +
(sdvtpcorn*(globalsigmavtflag==1)))’
** no width effect
mp_svt D G S B pch_svt w=1e-6 l=l pd=pd ad=ad ps=ps as=as
m=’w/1.0e-6’ nf=n_fingers wnflag=1 delvto=delvto
** width effect
*mp_svt D G S B pch_svt w=w l=l pd=pd ad=ad ps=ps as=as
nf=n_fingers wnflag=1 delvto=delvto
*************************************************************
* BSIM4.5.0 model card for p-type devices
*************************************************************
.model pch_svt.1 pmos ( level = 54
*************************************************************
*
MODEL FLAG PARAMETERS
*************************************************************
+lmin = 2.59e-008
lmax = 2.51e-007
wmin = ‘wmin_p_svt’
+wmax = ‘wmax_p_svt’ version = 4.5
binunit = 1
+paramchk = 1
mobmod = 1
capmod = 2
+igcmod = 2
igbmod = 1
geomod = 0
+diomod = 1
rdsmod = 0
rbodymod= 0
+rgeomod = 0
rgatemod= 0
permod = 1
+acnqsmod= 0
trnqsmod= 0
*************************************************************
*
GENERAL MODEL PARAMETERS
*************************************************************
+tnom = 25
toxe = ‘toxp_svt’
toxp = 1.012e-009
+toxm = ‘toxp_svt’
dtox = 2.5e-010
epsrox = 3.9
+toxref = 1.2e-009
wmlt = 1
wint = 0
+lint = 4.1628e-011
ll = 0
wl = 0
+lln = 1
wln = 1
lw = 0
+ww = 0
lwn = 1
wwn = 1
+lwl = 0
wwl = 0
xl = ‘0+dxlp_svt’
+xw = ‘0+dxwp_svt’
dlc = 2.6887e-009
dwc = 0
+xpart = 0
*************************************************************
*
DC PARAMETERS
*************************************************************
+vth0 = ‘-0.46149+dvthp_svt+sdvtp_svt+sigvtp_svt’ k1 = 0.35256
+lk1 = -0.0024567
k2 = 0.017398
k3 = 0.27044
+k3b = 0.07434
w0 = 1e-007
dvt0 = 0.52272
+dvt1 = 0.50091
dvt2 = -0.021065
dvt0w = 0.013
+dvt1w = 5984800
dvt2w = 0.05
dsub = 4.1202
