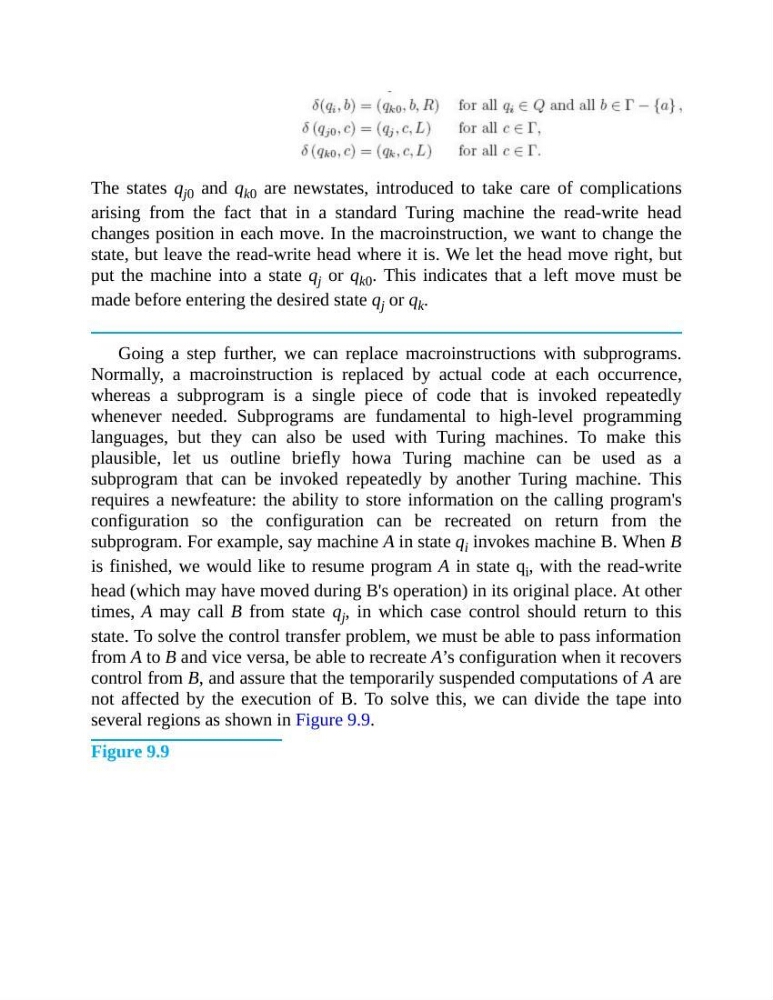

The states q j0 and q k0 are newstates, introduced to take care of complications
arising from the fact that in a standard Turing machine the read-write head
changes position in each move. In the macroinstruction, we want to change the
state, but leave the read-write head where it is. We let the head move right, but
put the machine into a state q j or q k0 . This indicates that a left move must be
made before entering the desired state q j or q k .
Going a step further, we can replace macroinstructions with subprograms.
Normally, a macroinstruction is replaced by actual code at each occurrence,
whereas a subprogram is a single piece of code that is invoked repeatedly
whenever needed. Subprograms are fundamental to high-level programming
languages, but they can also be used with Turing machines. To make this
plausible, let us outline briefly howa Turing machine can be used as a
subprogram that can be invoked repeatedly by another Turing machine. This
requires a newfeature: the ability to store information on the calling program's
configuration so the configuration can be recreated on return from the
subprogram. For example, say machine A in state q i invokes machine B. When B
is finished, we would like to resume program A in state q i , with the read-write
head (which may have moved during B's operation) in its original place. At other
times, A may call B from state q j , in which case control should return to this
state. To solve the control transfer problem, we must be able to pass information
from A to B and vice versa, be able to recreate A’s configuration when it recovers
control from B, and assure that the temporarily suspended computations of A are
not affected by the execution of B. To solve this, we can divide the tape into
several regions as shown in Figure 9.9.
Figure 9.9
