Scope of key working areas
Legend
Contour of CODCr concentration in 1st
aquifer (or leachate)
Boundary of the scope where CODCr
exceeds the limit
Scale (m)
concentration in 1st aquifer (or leachate)

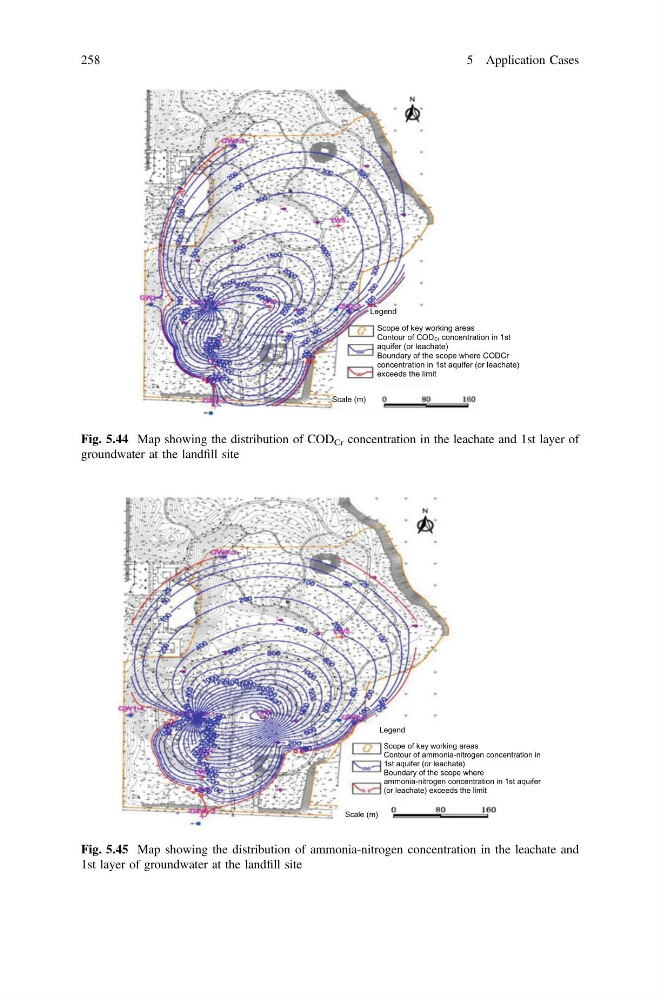

Fig. 5.44 Map showing the distribution of COD Cr concentration in the leachate and 1st layer of
groundwater at the landfill site
Legend
Scale (m)
Scope of key working areas
Contour of ammonia-nitrogen concentration in
1st aquifer (or leachate)
Boundary of the scope where
ammonia-nitrogen concentration in 1st aquifer
(or leachate) exceeds the limit
Fig. 5.45 Map showing the distribution of ammonia-nitrogen concentration in the leachate and
1st layer of groundwater at the landfill site
