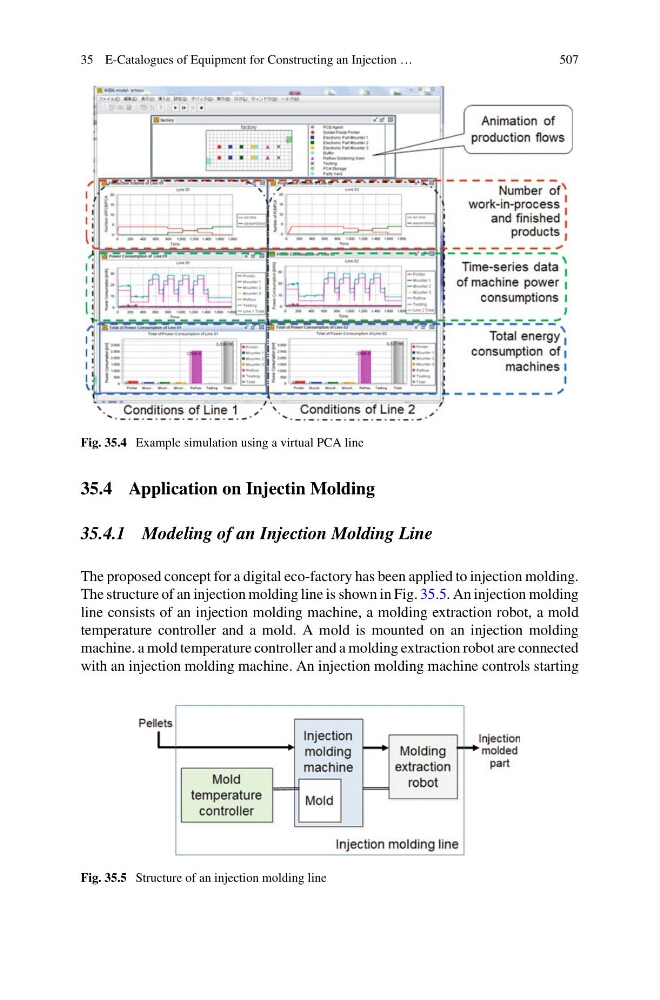

Fig. 35.4 Example simulation using a virtual PCA line
35.4 Application on Injectin Molding
35.4.1 Modeling of an Injection Molding Line
The proposed concept for a digital eco-factory has been applied to injection molding.
The structure of an injection molding line is shown in Fig. 35.5. An injection molding
line consists of an injection molding machine, a molding extraction robot, a mold
temperature controller and a mold. A mold is mounted on an injection molding
machine. a mold temperature controller and a molding extraction robot are connected
with an injection molding machine. An injection molding machine controls starting
Fig. 35.5 Structure of an injection molding line
