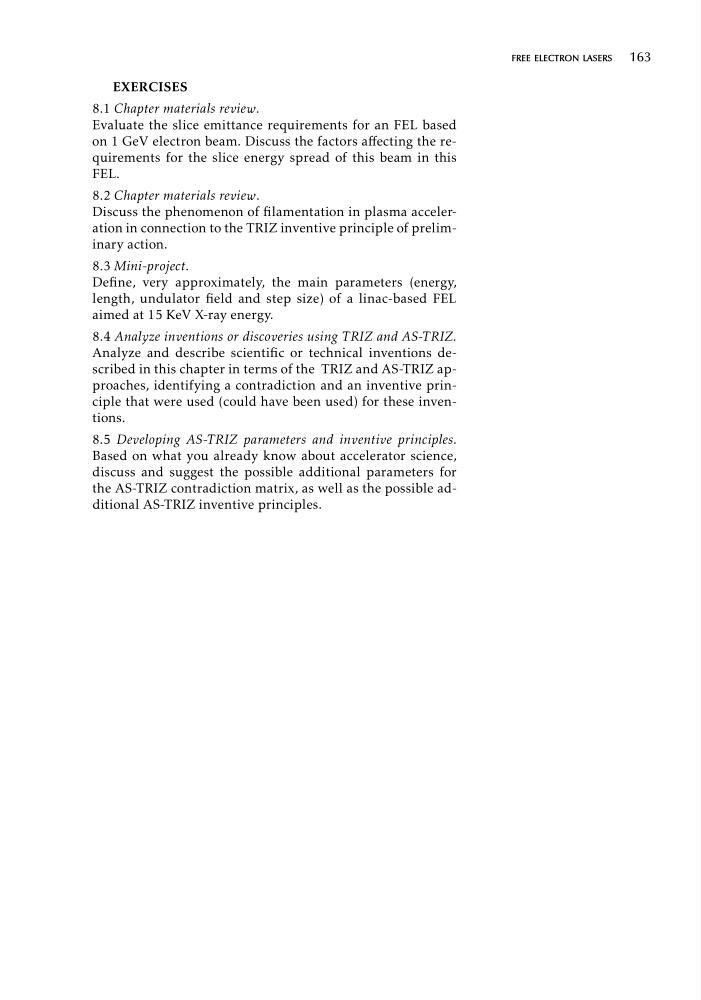

free electron lasers 163
EXERCISES
8.1 Chapter materials review.
Evaluate the slice emittance requirements for an FEL based
on 1 GeV electron beam. Discuss the factors affecting the requirements for the slice energy spread of this beam in this
FEL.
8.2 Chapter materials review.
Discuss the phenomenon of filamentation in plasma acceleration in connection to the TRIZ inventive principle of preliminary action.
8.3 Mini-project.
Define, very approximately, the main parameters (energy,
length, undulator field and step size) of a linac-based FEL
aimed at 15 KeV X-ray energy.
8.4 Analyze inventions or discoveries using TRIZ and AS-TRIZ.
Analyze and describe scientific or technical inventions described in this chapter in terms of the TRIZ and AS-TRIZ approaches, identifying a contradiction and an inventive principle that were used (could have been used) for these inventions.
8.5 Developing AS-TRIZ parameters and inventive principles.
Based on what you already know about accelerator science,
discuss and suggest the possible additional parameters for
the AS-TRIZ contradiction matrix, as well as the possible additional AS-TRIZ inventive principles.
