conventional acceleration 103

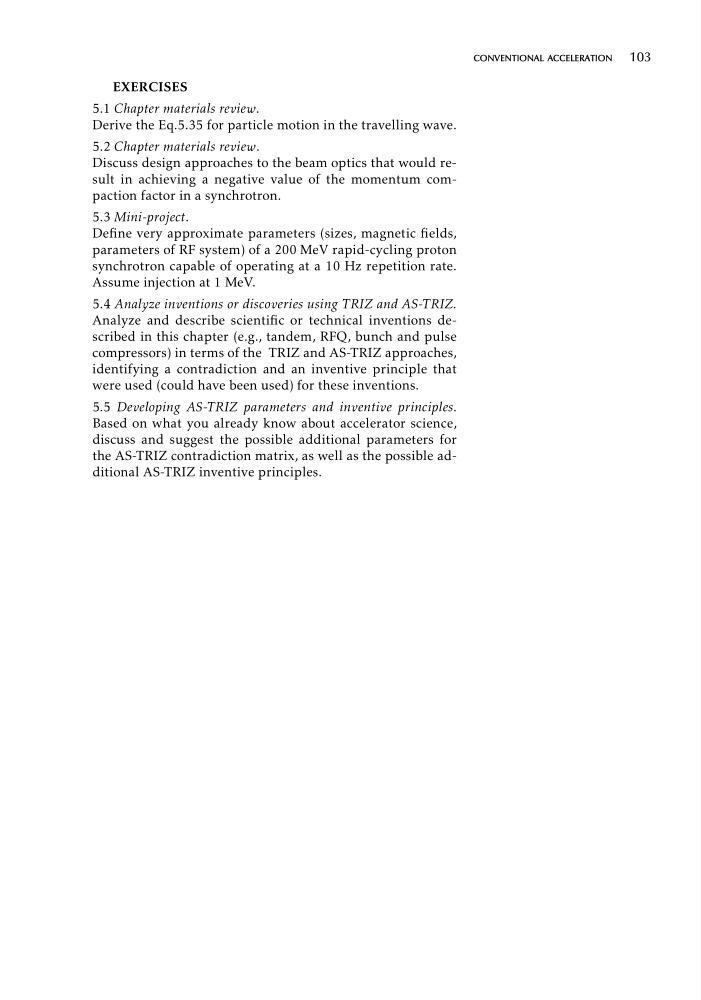

EXERCISES
5.1 Chapter materials review.
Derive the Eq.5.35 for particle motion in the travelling wave.
5.2 Chapter materials review.
Discuss design approaches to the beam optics that would result in achieving a negative value of the momentum compaction factor in a synchrotron.
5.3 Mini-project.
Define very approximate parameters (sizes, magnetic fields,
parameters of RF system) of a 200 MeV rapid-cycling proton
synchrotron capable of operating at a 10 Hz repetition rate.
Assume injection at 1 MeV.
5.4 Analyze inventions or discoveries using TRIZ and AS-TRIZ.
Analyze and describe scientific or technical inventions described in this chapter (e.g., tandem, RFQ, bunch and pulse
compressors) in terms of the TRIZ and AS-TRIZ approaches,
identifying a contradiction and an inventive principle that
were used (could have been used) for these inventions.
5.5 Developing AS-TRIZ parameters and inventive principles.
Based on what you already know about accelerator science,
discuss and suggest the possible additional parameters for
the AS-TRIZ contradiction matrix, as well as the possible additional AS-TRIZ inventive principles.
