1-D Steady-State Heat Conduction

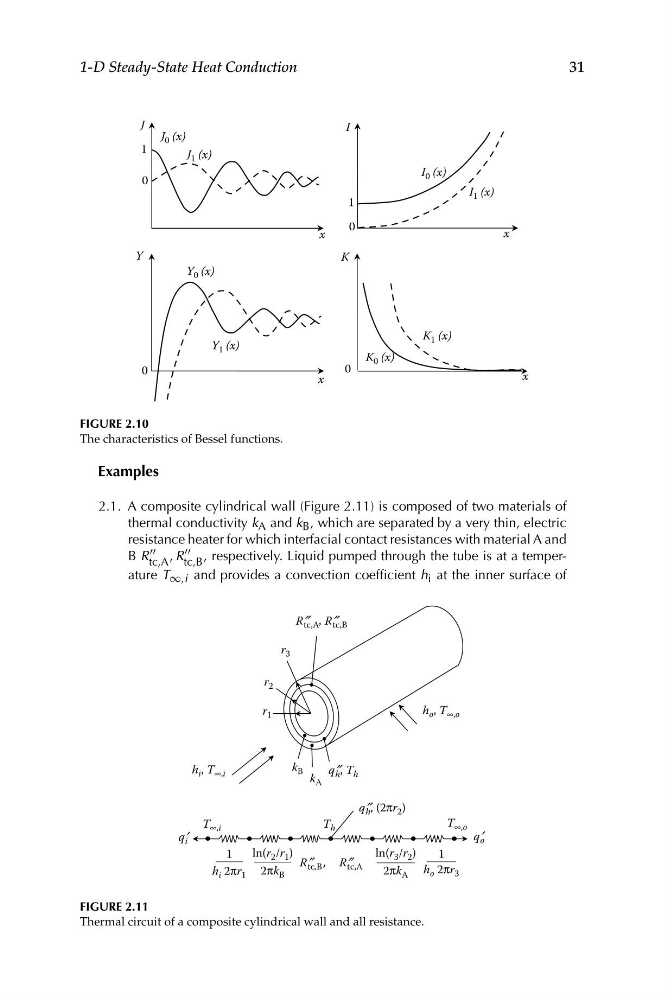

FIGURE 2.10
The characteristics of Bessel functions.
Examples
2.1. A composite cylindrical wall (Figure 2.11) is composed of two materials of
thermal conductivity k A and k B , which are separated by a very thin, electric
resistance heater for which interfacial contact resistances with material A and
B R ""
tc,B , respectively. Liquid pumped through the tube is at a tempertc,A , R ""
ature T ∞,i and provides a convection coefficient h i at the inner surface of
FIGURE 2.11
Thermal circuit of a composite cylindrical wall and all resistance.
