CHAPTER II
MATERIALS AND METHODS
47

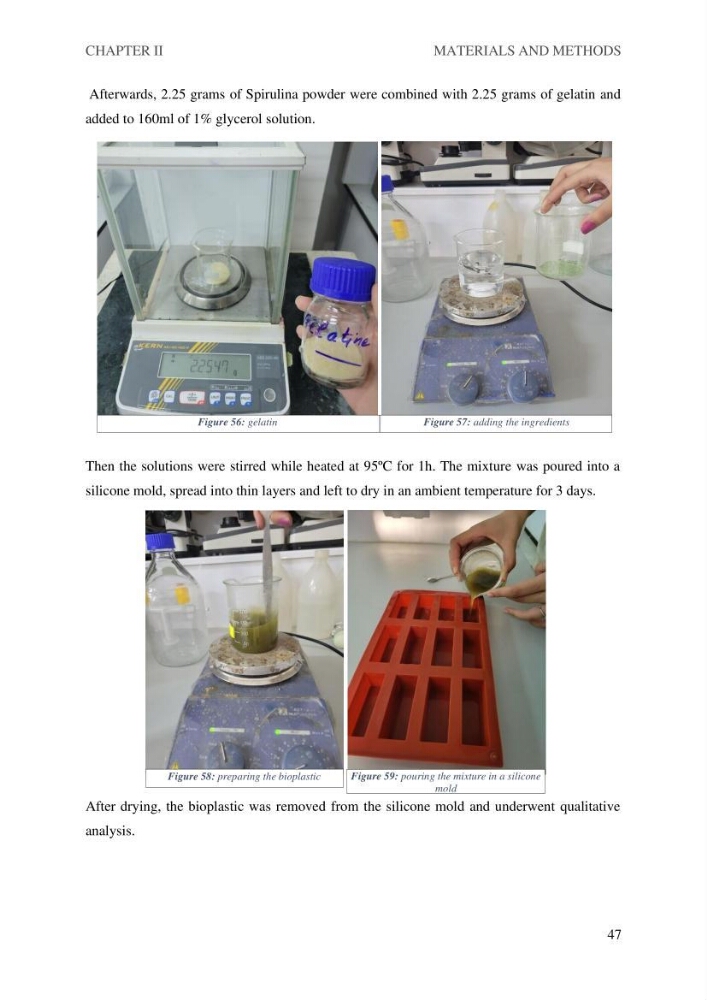

Figure 57: adding the ingredients
Figure 56: gelatin
Figure 59: pouring the mixture in a silicone
mold
Figure 58: preparing the bioplastic
Afterwards, 2.25 grams of Spirulina powder were combined with 2.25 grams of gelatin and
added to 160ml of 1% glycerol solution.
Then the solutions were stirred while heated at 95ºC for 1h. The mixture was poured into a
silicone mold, spread into thin layers and left to dry in an ambient temperature for 3 days.
After drying, the bioplastic was removed from the silicone mold and underwent qualitative
analysis.
MATERIALS AND METHODS
47
Figure 57: adding the ingredients
Figure 56: gelatin
Figure 59: pouring the mixture in a silicone
mold
Figure 58: preparing the bioplastic
Afterwards, 2.25 grams of Spirulina powder were combined with 2.25 grams of gelatin and
added to 160ml of 1% glycerol solution.
Then the solutions were stirred while heated at 95ºC for 1h. The mixture was poured into a
silicone mold, spread into thin layers and left to dry in an ambient temperature for 3 days.
After drying, the bioplastic was removed from the silicone mold and underwent qualitative
analysis.
