Developments in Textile Continuous Processing Machineries
383

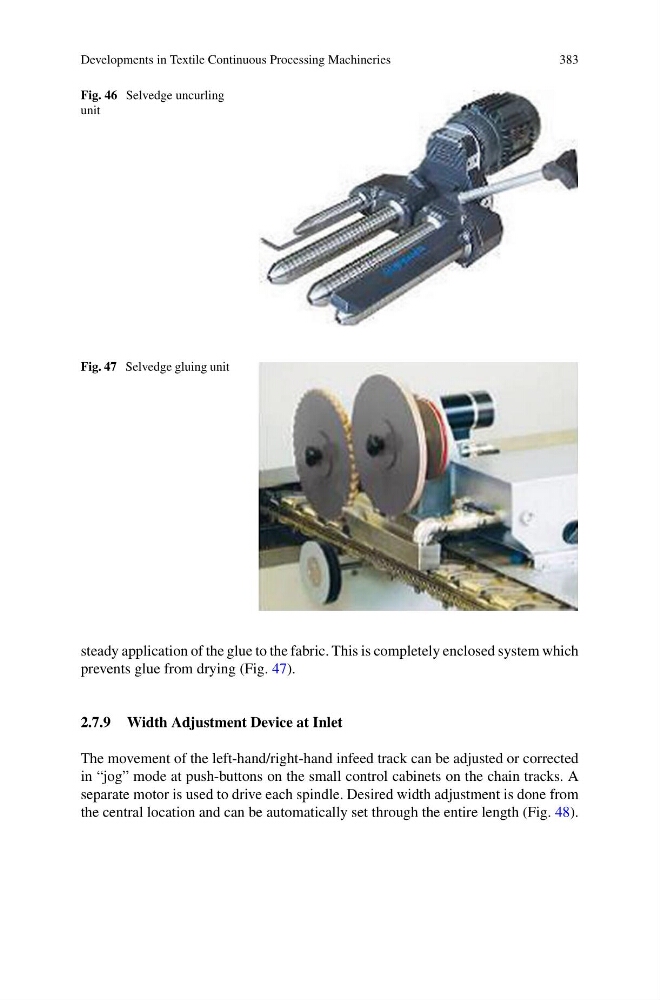

Fig. 46 Selvedge uncurling
unit
Fig. 47 Selvedge gluing unit
steady application of the glue to the fabric. This is completely enclosed system which
prevents glue from drying (Fig. 47).
2.7.9 Width Adjustment Device at Inlet
The movement of the left-hand/right-hand infeed track can be adjusted or corrected
in “jog” mode at push-buttons on the small control cabinets on the chain tracks. A
separate motor is used to drive each spindle. Desired width adjustment is done from
the central location and can be automatically set through the entire length (Fig. 48).
383
Fig. 46 Selvedge uncurling
unit
Fig. 47 Selvedge gluing unit
steady application of the glue to the fabric. This is completely enclosed system which
prevents glue from drying (Fig. 47).
2.7.9 Width Adjustment Device at Inlet
The movement of the left-hand/right-hand infeed track can be adjusted or corrected
in “jog” mode at push-buttons on the small control cabinets on the chain tracks. A
separate motor is used to drive each spindle. Desired width adjustment is done from
the central location and can be automatically set through the entire length (Fig. 48).
