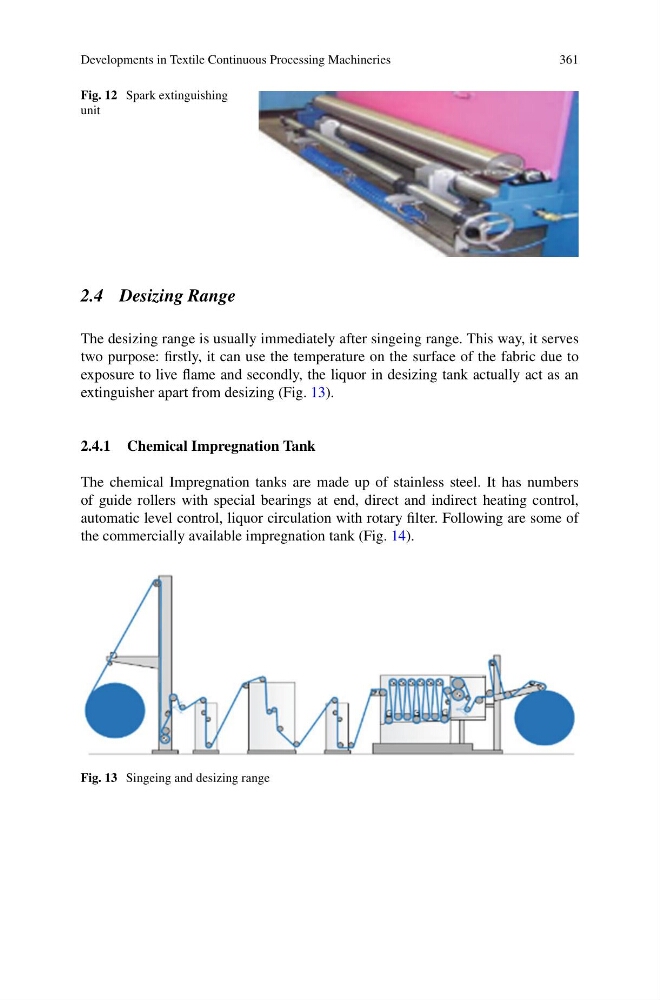

Developments in Textile Continuous Processing Machineries
361
Fig. 12 Spark extinguishing
unit
2.4 Desizing Range
The desizing range is usually immediately after singeing range. This way, it serves
two purpose: firstly, it can use the temperature on the surface of the fabric due to
exposure to live flame and secondly, the liquor in desizing tank actually act as an
extinguisher apart from desizing (Fig. 13).
2.4.1 Chemical Impregnation Tank
The chemical Impregnation tanks are made up of stainless steel. It has numbers
of guide rollers with special bearings at end, direct and indirect heating control,
automatic level control, liquor circulation with rotary filter. Following are some of
the commercially available impregnation tank (Fig. 14).
Fig. 13 Singeing and desizing range
361
Fig. 12 Spark extinguishing
unit
2.4 Desizing Range
The desizing range is usually immediately after singeing range. This way, it serves
two purpose: firstly, it can use the temperature on the surface of the fabric due to
exposure to live flame and secondly, the liquor in desizing tank actually act as an
extinguisher apart from desizing (Fig. 13).
2.4.1 Chemical Impregnation Tank
The chemical Impregnation tanks are made up of stainless steel. It has numbers
of guide rollers with special bearings at end, direct and indirect heating control,
automatic level control, liquor circulation with rotary filter. Following are some of
the commercially available impregnation tank (Fig. 14).
Fig. 13 Singeing and desizing range
