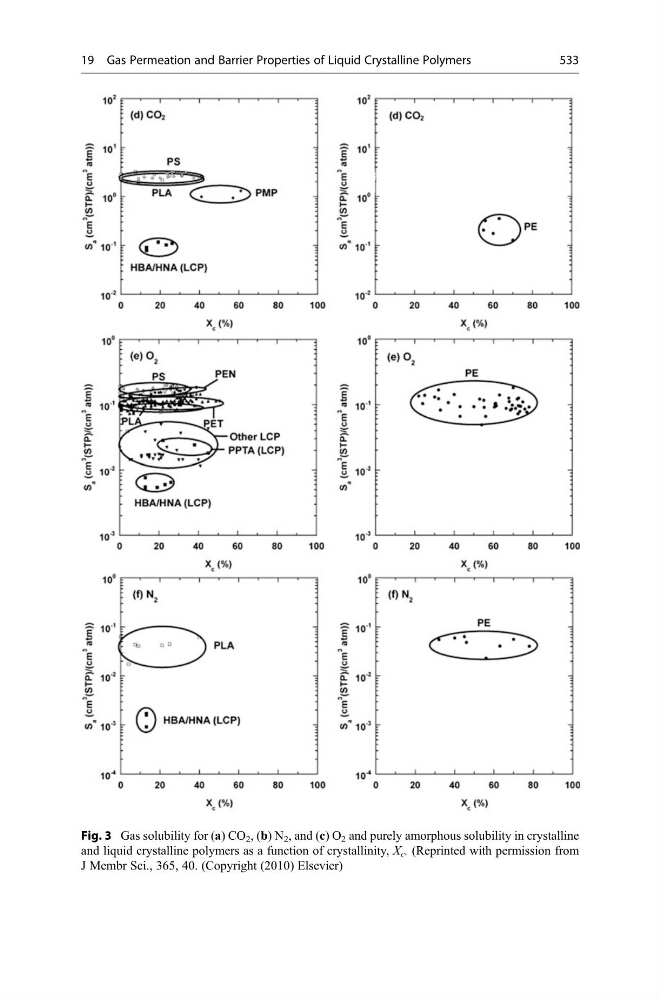

Fig. 3 Gas solubility for (a) CO 2 , (b) N 2 , and (c) O 2 and purely amorphous solubility in crystalline
and liquid crystalline polymers as a function of crystallinity, X c . (Reprinted with permission from
J Membr Sci., 365, 40. (Copyright (2010) Elsevier)
19 Gas Permeation and Barrier Properties of Liquid Crystalline Polymers
533
