Segalman et al. studied the room temperature and high temperature phase
behavior of weakly segregated PI-b-PPV (alkoxyphenylenevinylene) RCBCP
system consisting of PPV rods and PI coils with varying f
coil (0.42–89) but
constant PPV rod length (M n PPV = 3545 g/mol) (Olsen and Segalman 2005,
2006). All the samples exhibited L phases at low temperatures. However, with an

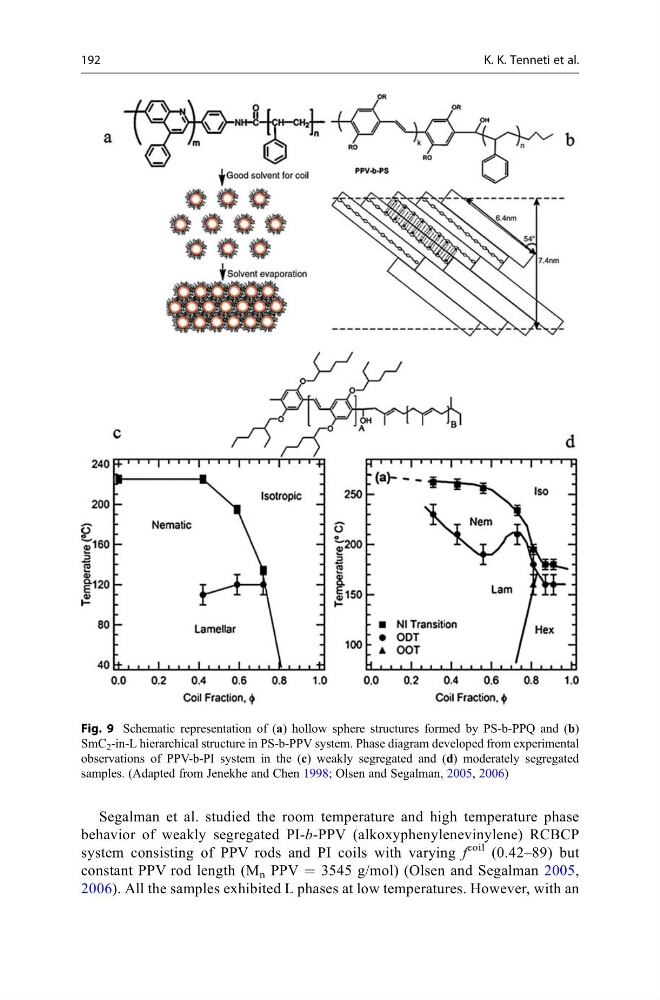

Fig. 9 Schematic representation of (a) hollow sphere structures formed by PS-b-PPQ and (b)
SmC 2 -in-L hierarchical structure in PS-b-PPV system. Phase diagram developed from experimental
observations of PPV-b-PI system in the (c) weakly segregated and (d) moderately segregated
samples. (Adapted from Jenekhe and Chen 1998; Olsen and Segalman, 2005, 2006)
192
K. K. Tenneti et al.
