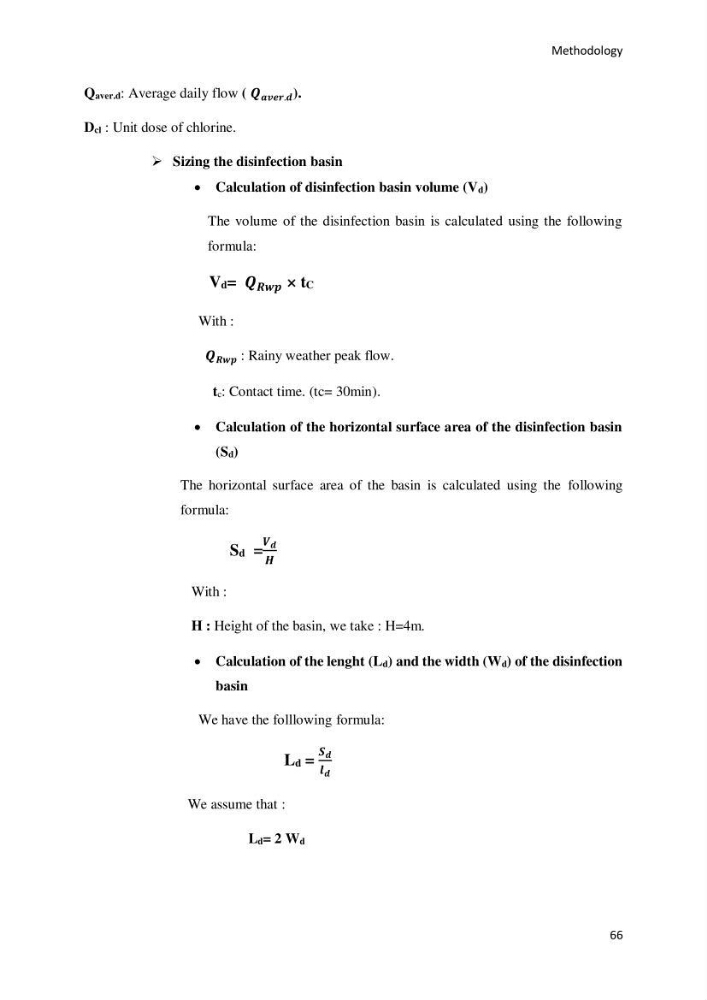

Methodology
66
Qaver.d: Average daily flow ( í µí±¸ í µí²í µí²í µí²í µí².í µí² ).
Dcl : Unit dose of chlorine.
Sizing the disinfection basin
Calculation of disinfection basin volume (Vd)
The volume of the disinfection basin is calculated using the following
formula:
Vd= í µí±¸ í µí±¹í µí²í µí² × tC
With :
í µí±¸ í µí±¹í µí²í µí² : Rainy weather peak flow.
tc: Contact time. (tc= 30min).
Calculation of the horizontal surface area of the disinfection basin
(Sd)
The horizontal surface area of the basin is calculated using the following
formula:
Sd =
í µí±½ í µí²
í µí±¯
With :
H : Height of the basin, we take : H=4m.
Calculation of the lenght (Ld) and the width (Wd) of the disinfection
basin
We have the folllowing formula:
Ld =
í µí±º í µí²
í µí² í µí²
We assume that :
Ld= 2 Wd
