7.2 Impact Test on 10CrNi3MoV21A Armor Steel/SiC Ceramic/UHPCC …
191
SiC ceramic
(a)
(b)
Q235 steel
frame
SiC plate
10CrNi3MoV21A
armor steel plate
10CrNi3MoV21A
armor steel plate
SiC ceramic plate
(c)

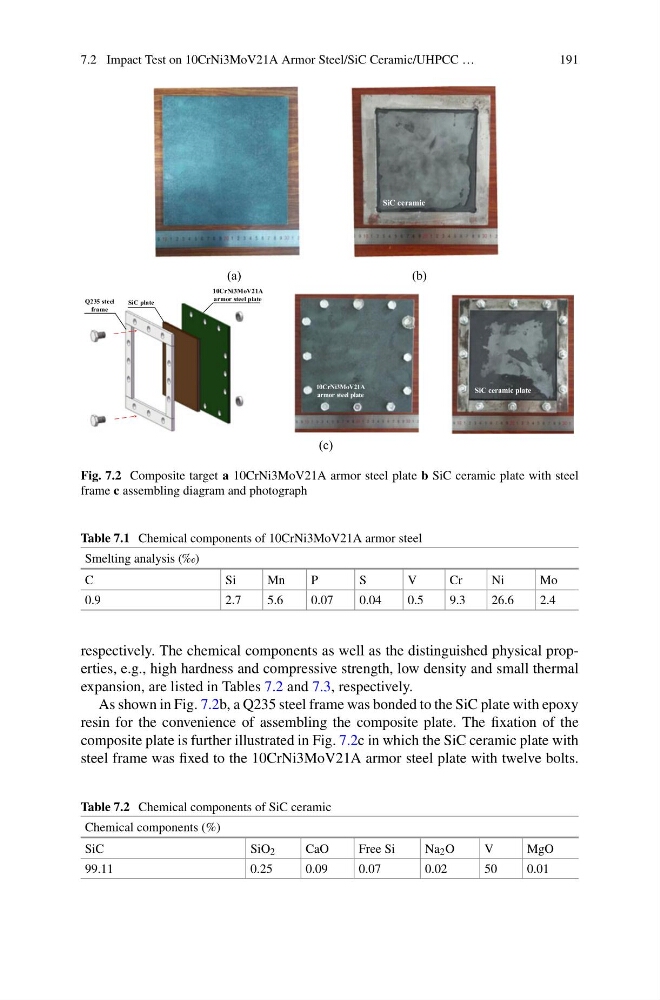

Fig. 7.2 Composite target a 10CrNi3MoV21A armor steel plate b SiC ceramic plate with steel
frame c assembling diagram and photograph
Table 7.1 Chemical components of 10CrNi3MoV21A armor steel
Smelting analysis (‰)
C
Si
Mn
P
S
V
Cr
Ni
Mo
0.9
2.7
5.6
0.07
0.04
0.5
9.3
26.6
2.4
respectively. The chemical components as well as the distinguished physical properties, e.g., high hardness and compressive strength, low density and small thermal
expansion, are listed in Tables 7.2 and 7.3, respectively.
As shown in Fig. 7.2b, a Q235 steel frame was bonded to the SiC plate with epoxy
resin for the convenience of assembling the composite plate. The fixation of the
composite plate is further illustrated in Fig. 7.2c in which the SiC ceramic plate with
steel frame was fixed to the 10CrNi3MoV21A armor steel plate with twelve bolts.
Table 7.2 Chemical components of SiC ceramic
Chemical components (%)
SiC
SiO 2
CaO
Free Si
Na 2 O
V
MgO
99.11
0.25
0.09
0.07
0.02
50
0.01
