6.7 Charts of Vibration Characters Verusus Parameters
185

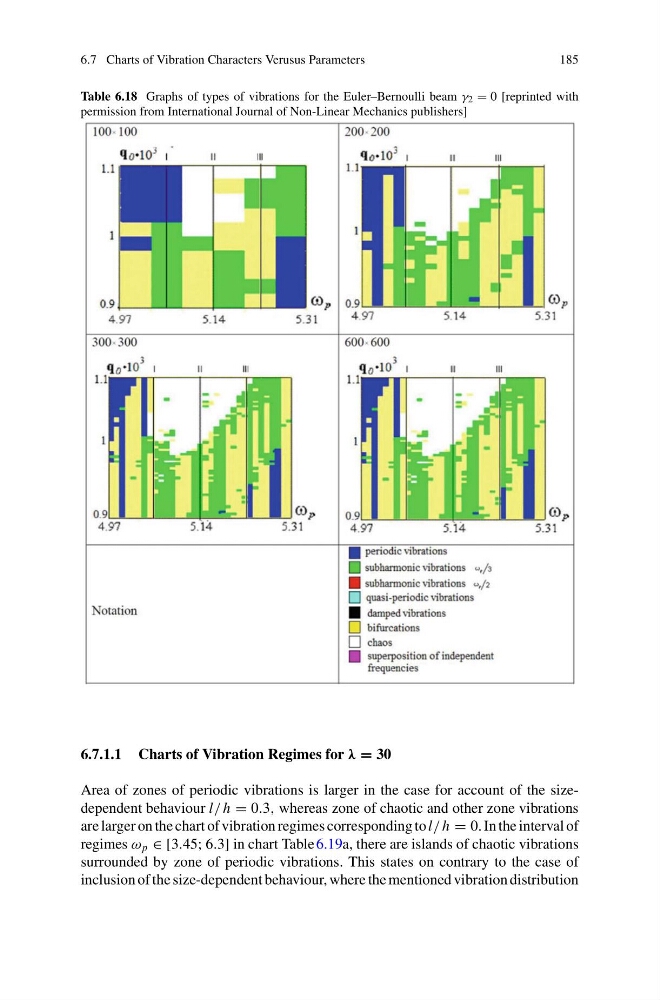

Table 6.18 Graphs of types of vibrations for the Euler–Bernoulli beam γ 2 = 0 [reprinted with
permission from International Journal of Non-Linear Mechanics publishers]
6.7.1.1 Charts of Vibration Regimes for λ = 30
Area of zones of periodic vibrations is larger in the case for account of the sizedependent behaviour l/ h = 0.3, whereas zone of chaotic and other zone vibrations
are larger on the chart of vibration regimes corresponding to l/ h = 0. In the interval of
regimes ω p ∈ [3.45; 6.3] in chart Table 6.19a, there are islands of chaotic vibrations
surrounded by zone of periodic vibrations. This states on contrary to the case of
inclusion of the size-dependent behaviour, where the mentioned vibration distribution
