Design and Analysis of Circular and Square Arm …
465

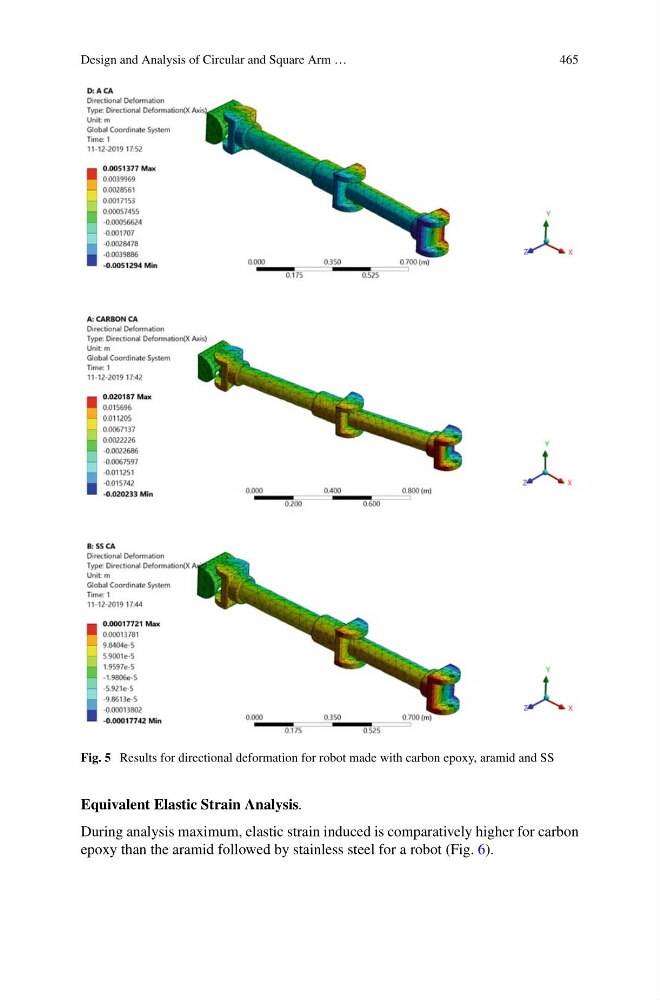

Fig. 5 Results for directional deformation for robot made with carbon epoxy, aramid and SS
Equivalent Elastic Strain Analysis.
During analysis maximum, elastic strain induced is comparatively higher for carbon
epoxy than the aramid followed by stainless steel for a robot (Fig. 6).
