Design and Development of Spoon Bundling Machine
421
1.2 Design of Base Mechanism
According to the ergonomics, the average height of the man is 5 ft. As the Spoon
Bundling Machine will be operated by the man, by filling the spoon in the storage, the
height of the machine is decided as 600 mm. The design of the base of the machine
is shown in Fig. 1. Length of the base is 900 mm and width of the base is 600 mm.
Now the approximate Length of the Storage Mechanism is 150 mm. Approximate
Length of the Star Wheel Mechanism is 400 mm. Approximate Glue Mechanism
length is 150 mm. Approximate Length of PLC Setup Mechanism is 150 mm.
Now, Total Length of all the mechanism together will be: 150 + 400 + 150 +
150 = 850 mm.
Therefore, by considering the above factors of mechanism Base Plate is 900 ×
600 mm.

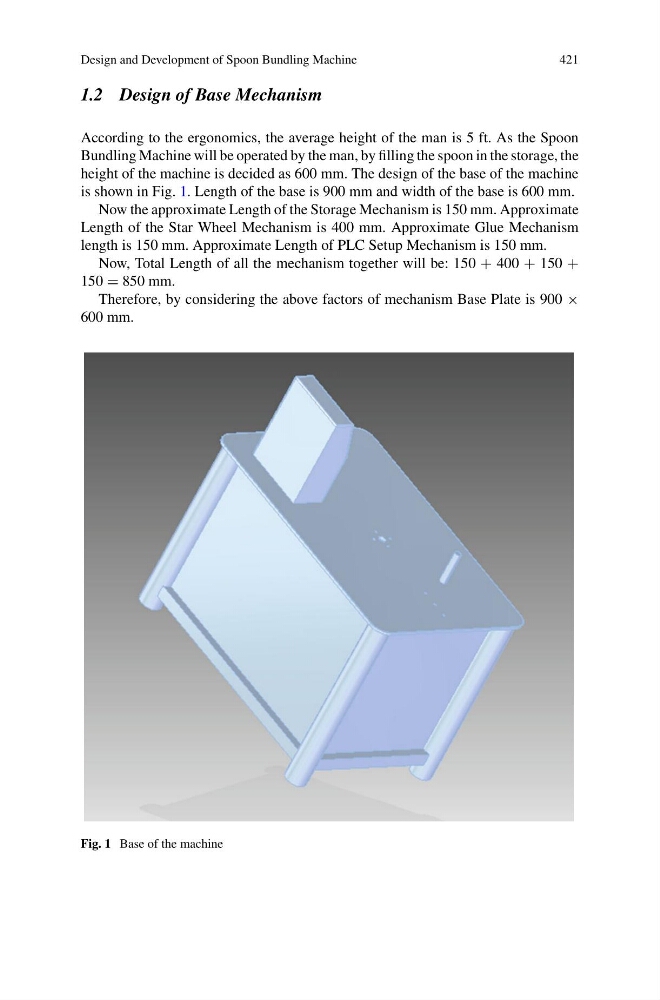

Fig. 1 Base of the machine
