360
G. Kumar and H. Gupta

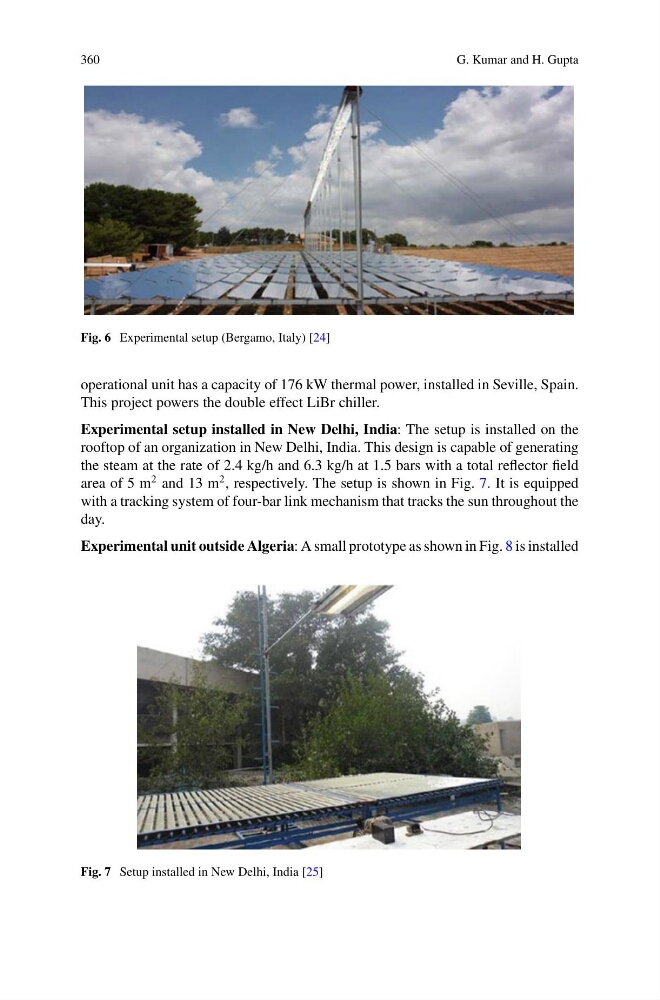

Fig. 6 Experimental setup (Bergamo, Italy) [24]
operational unit has a capacity of 176 kW thermal power, installed in Seville, Spain.
This project powers the double effect LiBr chiller.
Experimental setup installed in New Delhi, India: The setup is installed on the
rooftop of an organization in New Delhi, India. This design is capable of generating
the steam at the rate of 2.4 kg/h and 6.3 kg/h at 1.5 bars with a total reflector field
area of 5 m
2 and 13 m
2 , respectively. The setup is shown in Fig. 7. It is equipped
with a tracking system of four-bar link mechanism that tracks the sun throughout the
day.
Experimental unit outside Algeria: A small prototype as shown in Fig. 8 is installed
Fig. 7 Setup installed in New Delhi, India [25]
