490
P. Liu

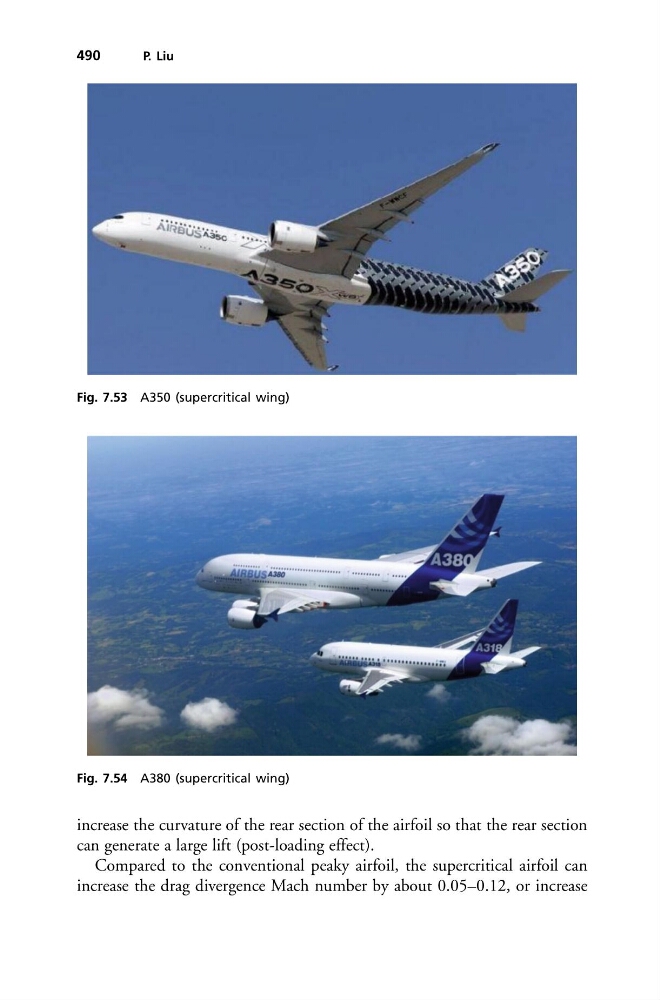

Fig. 7.53 A350 (supercritical wing)
Fig. 7.54 A380 (supercritical wing)
increase the curvature of the rear section of the airfoil so that the rear section
can generate a large lift (post-loading effect).
Compared to the conventional peaky airfoil, the supercritical airfoil can
increase the drag divergence Mach number by about 0.05–0.12, or increase
