6 Wind and Water Tunnel Equipment
401

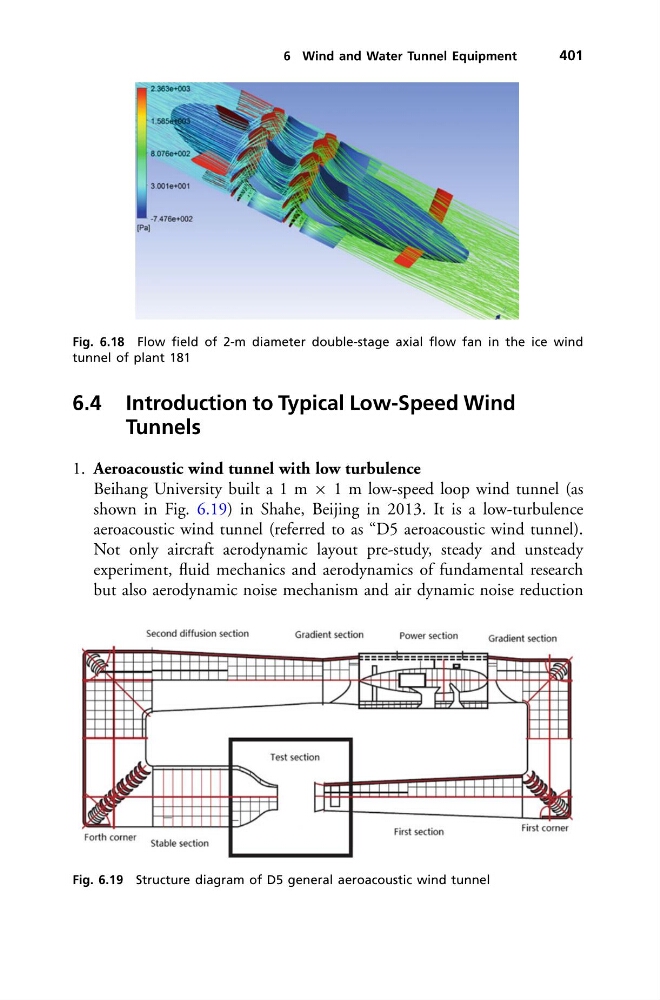

Fig. 6.18 Flow field of 2-m diameter double-stage axial flow fan in the ice wind
tunnel of plant 181
6.4 Introduction to Typical Low-Speed Wind
Tunnels
1. Aeroacoustic wind tunnel with low turbulence
Beihang University built a 1 m × 1 m low-speed loop wind tunnel (as
shown in Fig. 6.19) in Shahe, Beijing in 2013. It is a low-turbulence
aeroacoustic wind tunnel (referred to as “D5 aeroacoustic wind tunnel).
Not only aircraft aerodynamic layout pre-study, steady and unsteady
experiment, fluid mechanics and aerodynamics of fundamental research
but also aerodynamic noise mechanism and air dynamic noise reduction
Fig. 6.19 Structure diagram of D5 general aeroacoustic wind tunnel
