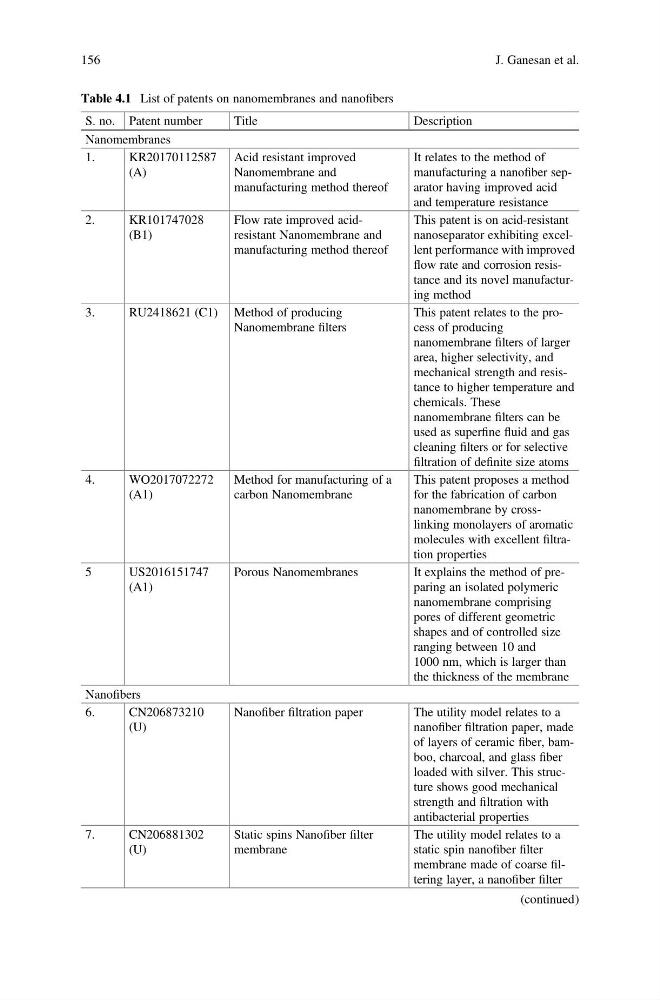

Table 4.1 List of patents on nanomembranes and nanofibers
S. no. Patent number
Title
Description
Nanomembranes
1.
KR20170112587
(A)
Acid resistant improved
Nanomembrane and
manufacturing method thereof
It relates to the method of
manufacturing a nanofiber separator having improved acid
and temperature resistance
2.
KR101747028
(B1)
Flow rate improved acidresistant Nanomembrane and
manufacturing method thereof
This patent is on acid-resistant
nanoseparator exhibiting excellent performance with improved
flow rate and corrosion resistance and its novel manufacturing method
3.
RU2418621 (C1) Method of producing
Nanomembrane filters
This patent relates to the process of producing
nanomembrane filters of larger
area, higher selectivity, and
mechanical strength and resistance to higher temperature and
chemicals. These
nanomembrane filters can be
used as superfine fluid and gas
cleaning filters or for selective
filtration of definite size atoms
4.
WO2017072272
(A1)
Method for manufacturing of a
carbon Nanomembrane
This patent proposes a method
for the fabrication of carbon
nanomembrane by crosslinking monolayers of aromatic
molecules with excellent filtration properties
5
US2016151747
(A1)
Porous Nanomembranes
It explains the method of preparing an isolated polymeric
nanomembrane comprising
pores of different geometric
shapes and of controlled size
ranging between 10 and
1000 nm, which is larger than
the thickness of the membrane
Nanofibers
6.
CN206873210
(U)
Nanofiber filtration paper
The utility model relates to a
nanofiber filtration paper, made
of layers of ceramic fiber, bamboo, charcoal, and glass fiber
loaded with silver. This structure shows good mechanical
strength and filtration with
antibacterial properties
7.
CN206881302
(U)
Static spins Nanofiber filter
membrane
The utility model relates to a
static spin nanofiber filter
membrane made of coarse filtering layer, a nanofiber filter
(continued)
156
J. Ganesan et al.
