As long as the DSC results (Fig. 3), the incorporation of
the first form of polymer (called PNIPAM 1) (20  kDa) in
DPPC liposomes affected only the specific enthalpy ΔH m of
the main transition, reflecting an alteration at the mobility
of the lipid polar head groups. The main transition temperature  T m was slightly reduced, while the system
cooperativity was reduced (increase of ΔΤ 1/2 ) at a
Temperature / ºC
Temperature / ºC
Heat
flow/mW,
endothermic Heat
flow/mW,
endothermic
a
b
a.
a.
b.
b.
c.
c.
d.
d.
e.
e.
f.
f.
24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56
22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56

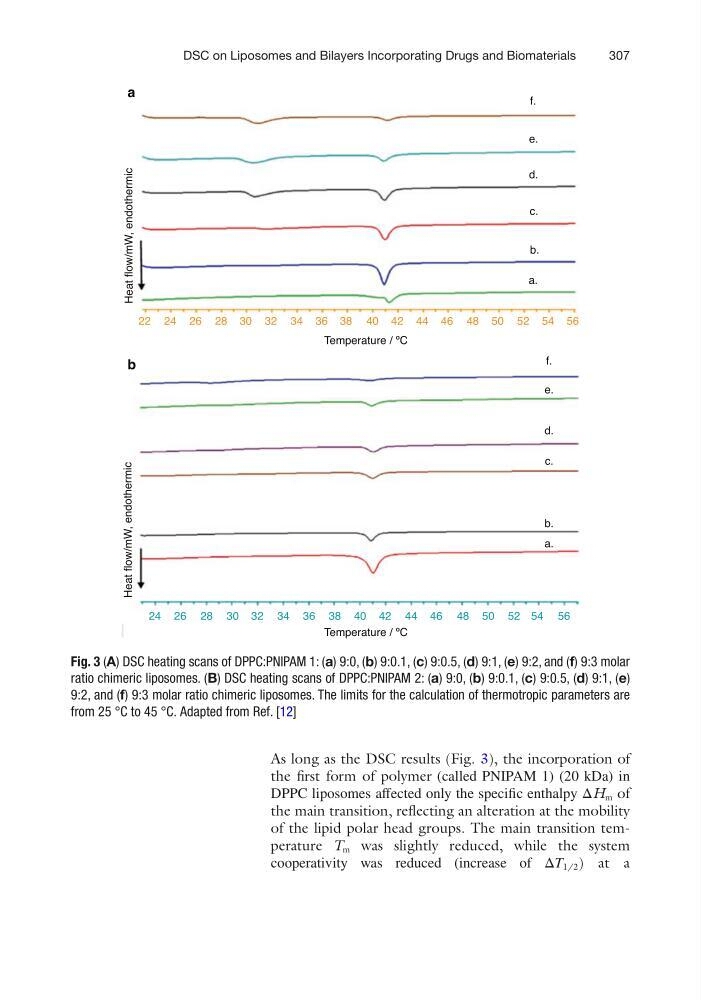

Fig. 3 (A) DSC heating scans of DPPC:PNIPAM 1: (a) 9:0, (b) 9:0.1, (c) 9:0.5, (d) 9:1, (e) 9:2, and (f) 9:3 molar
ratio chimeric liposomes. (B) DSC heating scans of DPPC:PNIPAM 2: (a) 9:0, (b) 9:0.1, (c) 9:0.5, (d) 9:1, (e)
9:2, and (f) 9:3 molar ratio chimeric liposomes. The limits for the calculation of thermotropic parameters are
from 25 °C to 45 °C. Adapted from Ref. [12]
