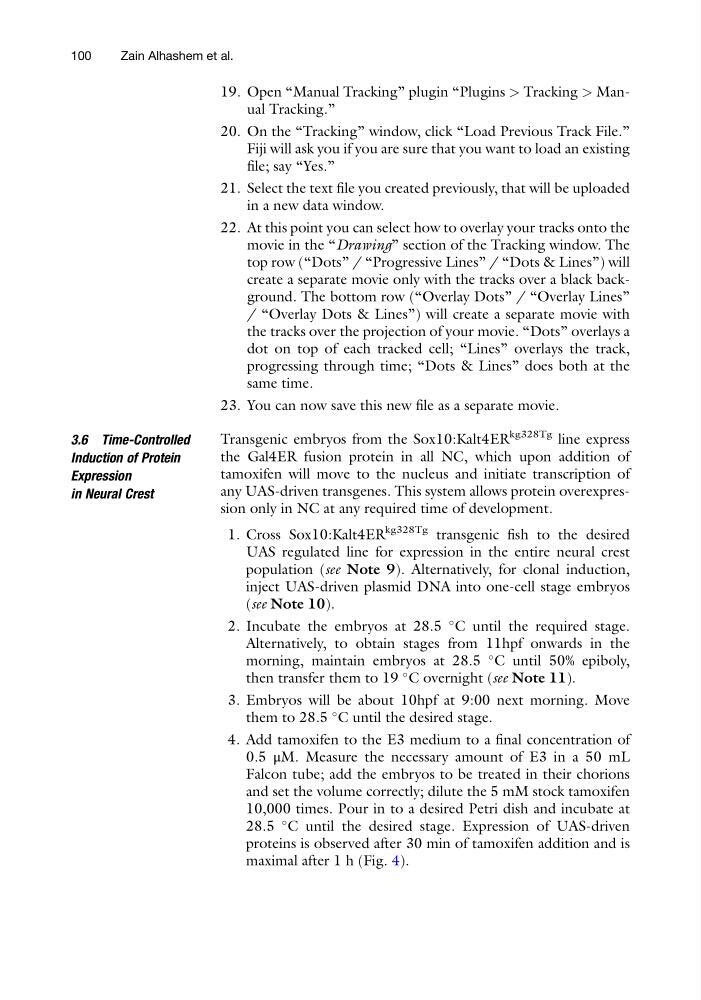

19. Open “Manual Tracking” plugin “Plugins > Tracking > Manual Tracking.”
20. On the “Tracking” window, click “Load Previous Track File.”
Fiji will ask you if you are sure that you want to load an existing
file; say “Yes.”
21. Select the text file you created previously, that will be uploaded
in a new data window.
22. At this point you can select how to overlay your tracks onto the
movie in the “Drawing” section of the Tracking window. The
top row (“Dots” / “Progressive Lines” / “Dots & Lines”) will
create a separate movie only with the tracks over a black background. The bottom row (“Overlay Dots” / “Overlay Lines”
/ “Overlay Dots & Lines”) will create a separate movie with
the tracks over the projection of your movie. “Dots” overlays a
dot on top of each tracked cell; “Lines” overlays the track,
progressing through time; “Dots & Lines” does both at the
same time.
23. You can now save this new file as a separate movie.
3.6 Time-Controlled
Induction of Protein
Expression
in Neural Crest
Transgenic embryos from the Sox10:Kalt4ER
kg328Tg line express
the Gal4ER fusion protein in all NC, which upon addition of
tamoxifen will move to the nucleus and initiate transcription of
any UAS-driven transgenes. This system allows protein overexpression only in NC at any required time of development.
1. Cross Sox10:Kalt4ER
kg328Tg transgenic fish to the desired
UAS regulated line for expression in the entire neural crest
population (see Note 9). Alternatively, for clonal induction,
inject UAS-driven plasmid DNA into one-cell stage embryos
(see Note 10).
2. Incubate the embryos at 28.5
C until the required stage.
Alternatively, to obtain stages from 11hpf onwards in the
morning, maintain embryos at 28.5
C until 50% epiboly,
then transfer them to 19
C overnight (see Note 11).
3. Embryos will be about 10hpf at 9:00 next morning. Move
them to 28.5
C until the desired stage.
4. Add tamoxifen to the E3 medium to a final concentration of
0.5 μM. Measure the necessary amount of E3 in a 50 mL
Falcon tube; add the embryos to be treated in their chorions
and set the volume correctly; dilute the 5 mM stock tamoxifen
10,000 times. Pour in to a desired Petri dish and incubate at
28.5
C until the desired stage. Expression of UAS-driven
proteins is observed after 30 min of tamoxifen addition and is
maximal after 1 h (Fig. 4).
100
Zain Alhashem et al.
