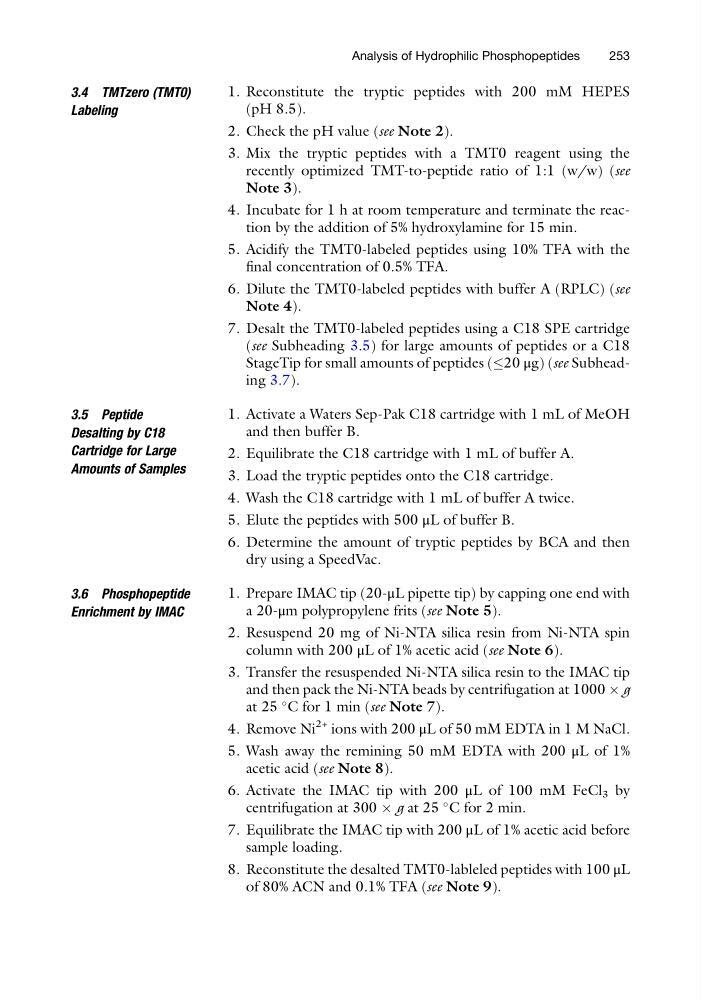

3.4 TMTzero (TMT0)
Labeling
1. Reconstitute the tryptic peptides with 200 mM HEPES
(pH 8.5).
2. Check the pH value (see Note 2).
3. Mix the tryptic peptides with a TMT0 reagent using the
recently optimized TMT-to-peptide ratio of 1:1 (w/w) (see
Note 3).
4. Incubate for 1 h at room temperature and terminate the reaction by the addition of 5% hydroxylamine for 15 min.
5. Acidify the TMT0-labeled peptides using 10% TFA with the
final concentration of 0.5% TFA.
6. Dilute the TMT0-labeled peptides with buffer A (RPLC) (see
Note 4).
7. Desalt the TMT0-labeled peptides using a C18 SPE cartridge
(see Subheading 3.5) for large amounts of peptides or a C18
StageTip for small amounts of peptides ( 20 μg) (see Subheading 3.7).
3.5 Peptide
Desalting by C18
Cartridge for Large
Amounts of Samples
1. Activate a Waters Sep-Pak C18 cartridge with 1 mL of MeOH
and then buffer B.
2. Equilibrate the C18 cartridge with 1 mL of buffer A.
3. Load the tryptic peptides onto the C18 cartridge.
4. Wash the C18 cartridge with 1 mL of buffer A twice.
5. Elute the peptides with 500 μL of buffer B.
6. Determine the amount of tryptic peptides by BCA and then
dry using a SpeedVac.
3.6 Phosphopeptide
Enrichment by IMAC
1. Prepare IMAC tip (20-μL pipette tip) by capping one end with
a 20-μm polypropylene frits (see Note 5).
2. Resuspend 20 mg of Ni-NTA silica resin from Ni-NTA spin
column with 200 μL of 1% acetic acid (see Note 6).
3. Transfer the resuspended Ni-NTA silica resin to the IMAC tip
and then pack the Ni-NTA beads by centrifugation at 1000 Â g
at 25
C for 1 min (see Note 7).
4. Remove Ni
2+ ions with 200 μL of 50 mM EDTA in 1 M NaCl.
5. Wash away the remining 50 mM EDTA with 200 μL of 1%
acetic acid (see Note 8).
6. Activate the IMAC tip with 200 μL of 100 mM FeCl 3 by
centrifugation at 300 Â g at 25
C for 2 min.
7. Equilibrate the IMAC tip with 200 μL of 1% acetic acid before
sample loading.
8. Reconstitute the desalted TMT0-lableled peptides with 100 μL
of 80% ACN and 0.1% TFA (see Note 9).
Analysis of Hydrophilic Phosphopeptides
253
