single effects of oxidation and reduction are studied, is provided in a double reactor
(a cathode and anode compartment) separated by a semipermeable electrically
conductive membrane. Reactors are designed as a closed mixed system with contaminated water and a remediation agent. One electrode is placed in each

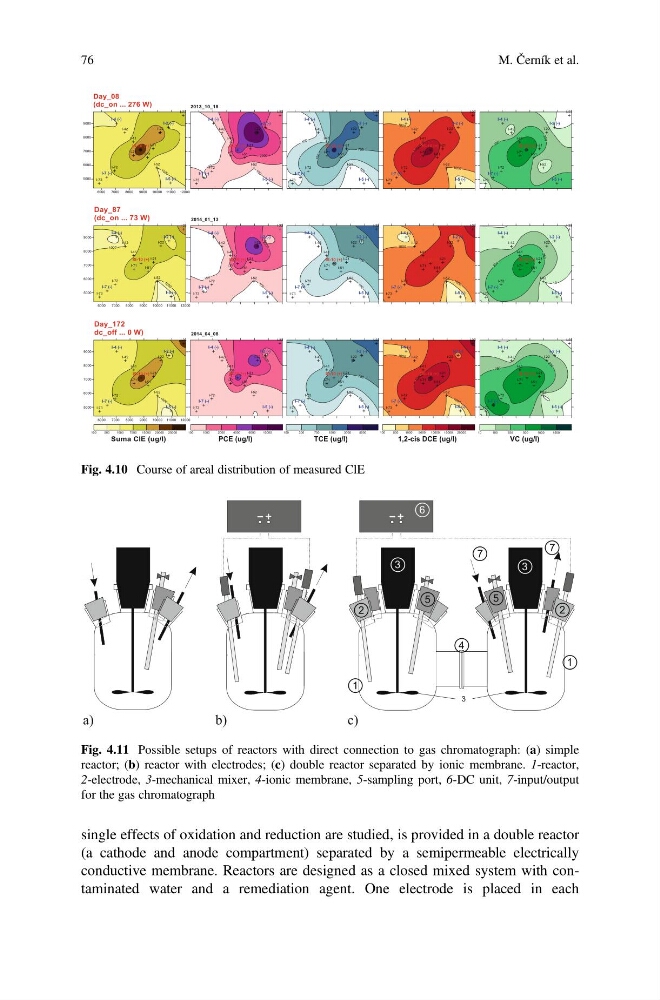

Fig. 4.10 Course of areal distribution of measured ClE
a)
b)
c)
3
6
5
5
4
3
3
2
2
1
1
7
7
Fig. 4.11 Possible setups of reactors with direct connection to gas chromatograph: (a) simple
reactor; (b) reactor with electrodes; (c) double reactor separated by ionic membrane. 1-reactor,
2-electrode, 3-mechanical mixer, 4-ionic membrane, 5-sampling port, 6-DC unit, 7-input/output
for the gas chromatograph
