2 Human Brain Anatomy in 3D
19

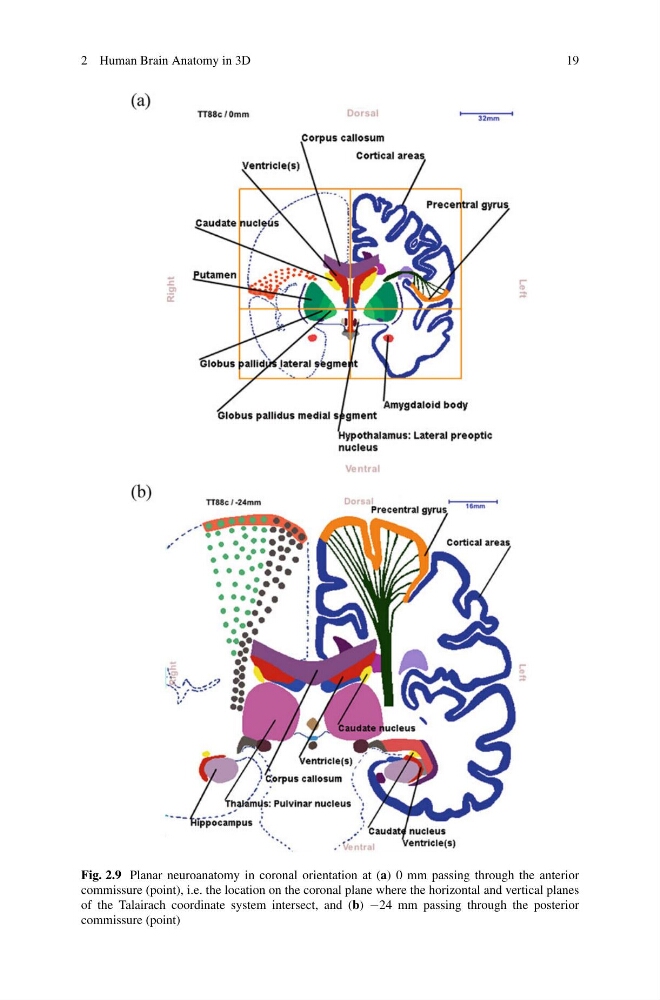

Fig. 2.9 Planar neuroanatomy in coronal orientation at (a) 0 mm passing through the anterior
commissure (point), i.e. the location on the coronal plane where the horizontal and vertical planes
of the Talairach coordinate system intersect, and (b) −24 mm passing through the posterior
commissure (point)
19
Fig. 2.9 Planar neuroanatomy in coronal orientation at (a) 0 mm passing through the anterior
commissure (point), i.e. the location on the coronal plane where the horizontal and vertical planes
of the Talairach coordinate system intersect, and (b) −24 mm passing through the posterior
commissure (point)
