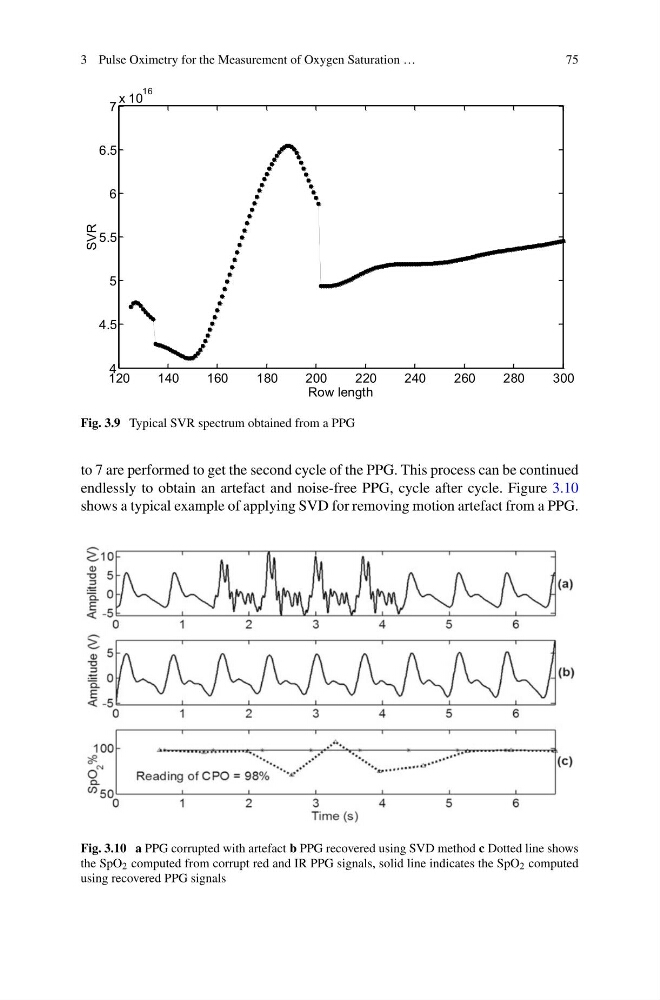

Fig. 3.9 Typical SVR spectrum obtained from a PPG
to 7 are performed to get the second cycle of the PPG. This process can be continued
endlessly to obtain an artefact and noise-free PPG, cycle after cycle. Figure 3.10
shows a typical example of applying SVD for removing motion artefact from a PPG.
Fig. 3.10 a PPG corrupted with artefact b PPG recovered using SVD method c Dotted line shows
the SpO 2 computed from corrupt red and IR PPG signals, solid line indicates the SpO 2 computed
using recovered PPG signals
