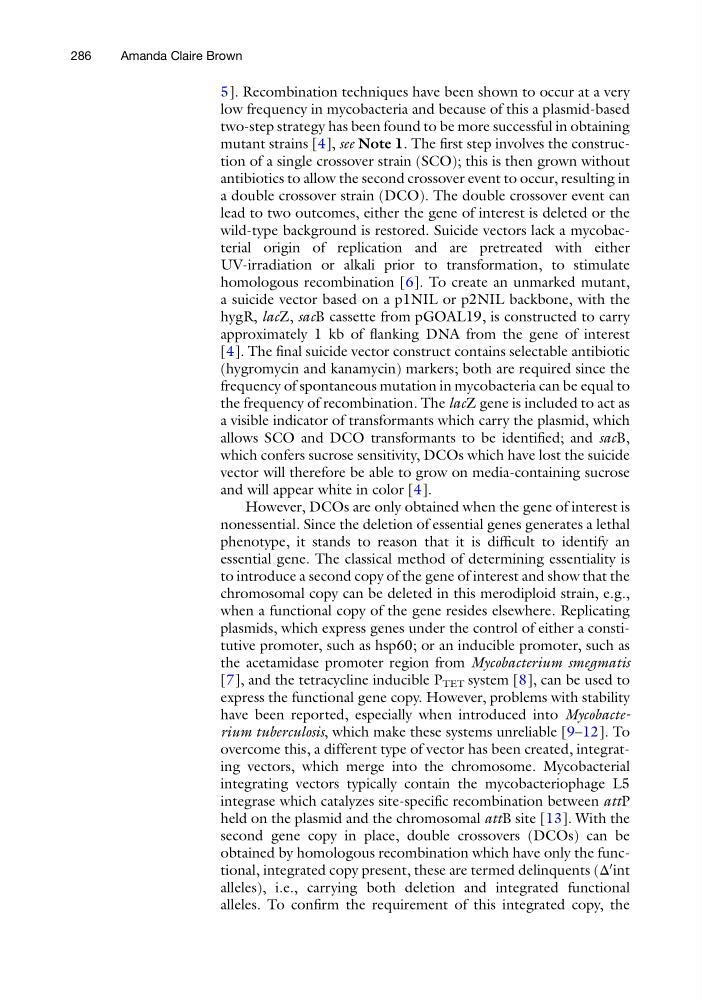

5]. Recombination techniques have been shown to occur at a very
low frequency in mycobacteria and because of this a plasmid-based
two-step strategy has been found to be more successful in obtaining
mutant strains [4], see Note 1. The first step involves the construction of a single crossover strain (SCO); this is then grown without
antibiotics to allow the second crossover event to occur, resulting in
a double crossover strain (DCO). The double crossover event can
lead to two outcomes, either the gene of interest is deleted or the
wild-type background is restored. Suicide vectors lack a mycobacterial origin of replication and are pretreated with either
UV-irradiation or alkali prior to transformation, to stimulate
homologous recombination [6]. To create an unmarked mutant,
a suicide vector based on a p1NIL or p2NIL backbone, with the
hygR, lacZ, sacB cassette from pGOAL19, is constructed to carry
approximately 1 kb of flanking DNA from the gene of interest
[4]. The final suicide vector construct contains selectable antibiotic
(hygromycin and kanamycin) markers; both are required since the
frequency of spontaneous mutation in mycobacteria can be equal to
the frequency of recombination. The lacZ gene is included to act as
a visible indicator of transformants which carry the plasmid, which
allows SCO and DCO transformants to be identified; and sacB,
which confers sucrose sensitivity, DCOs which have lost the suicide
vector will therefore be able to grow on media-containing sucrose
and will appear white in color [4].
However, DCOs are only obtained when the gene of interest is
nonessential. Since the deletion of essential genes generates a lethal
phenotype, it stands to reason that it is difficult to identify an
essential gene. The classical method of determining essentiality is
to introduce a second copy of the gene of interest and show that the
chromosomal copy can be deleted in this merodiploid strain, e.g.,
when a functional copy of the gene resides elsewhere. Replicating
plasmids, which express genes under the control of either a constitutive promoter, such as hsp60; or an inducible promoter, such as
the acetamidase promoter region from Mycobacterium smegmatis
[7], and the tetracycline inducible P TET system [8], can be used to
express the functional gene copy. However, problems with stability
have been reported, especially when introduced into Mycobacterium tuberculosis, which make these systems unreliable [9–12]. To
overcome this, a different type of vector has been created, integrating vectors, which merge into the chromosome. Mycobacterial
integrating vectors typically contain the mycobacteriophage L5
integrase which catalyzes site-specific recombination between attP
held on the plasmid and the chromosomal attB site [13]. With the
second gene copy in place, double crossovers (DCOs) can be
obtained by homologous recombination which have only the functional, integrated copy present, these are termed delinquents (Δ
0 int
alleles), i.e., carrying both deletion and integrated functional
alleles. To confirm the requirement of this integrated copy, the
