Bacterial Cellulose
Within. this. bioreactor,. 12. PCS. tubes. were. bound. to. the. agitator. shaft. in. a.
gridlike.fashion,.with.six.rows.of.two.parallel.tubes..Batch.fermentation.in.
this. reactor. for. 120. h. using. the. best. suited. type. of. PCS. tubes. resulted. in.
higher.yields.and.improved.material.properties.of.the.BNC.generated.compared.to.suspended-cell.fermentation.used.as.control..For.example,.the.BNC.
tested.from.the.PCS.biofilm.reactor.showed.an.increase.in.the.stress.at.break.
from.2.8.to.34.2.MPa.(PCS-grown.BNC).and.of.the.Young’s.modulus.from.
286.to.2401.MPa.(PCS-grown.BNC).
Airlift reactors
Instead. of. a. stirred. bioreactor,. Chao. et. al.. (2000). successfully. used. a. 50. L.
internal-loop. airlift. bioreactor. (Figure 3.4). to. improve. the. oxygen. transfer.
rate.and.achieved.a.high.BNC.yield.of.3.8.g/l.after.67.h.(corresponding.productivity. 0.0567. g/l/h). using. G. xylinus subsp.. sucrofermentans (BPR2001)..
However,. the. production. rate. of. BNC. was. significantly. increased. by. the.
utilization.of.an.oxygen-enriched.gas.in.the.system..The.BNC.amount.rose.
to.0.116.g/l/h..Chao.et.al..pointed.out.that.the.value.is.twice.that.of.a.typical.air-supplied.culture.and.comparable.to.that.of.a.mechanically.agitated.
Figure 3.4

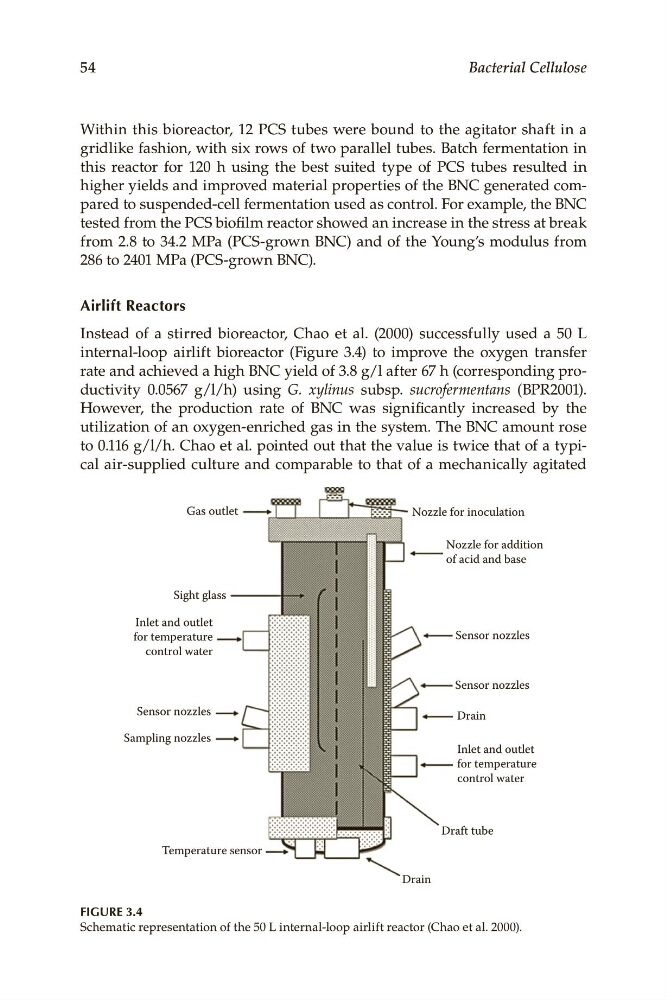

Schematic.representation.of.the.50.L.internal-loop.airlift.reactor.(Chao.et.al..2000).
