M. Ravaioli et al.
214
mooring A
NEAR ROSS ICE SHELF
MOORING B
CENTRAL NORTHERN JOIDES BASIN
MOORING C
NORTHERN FLANK MAWSON BANK
1^ H polychaetes |
| bivalves

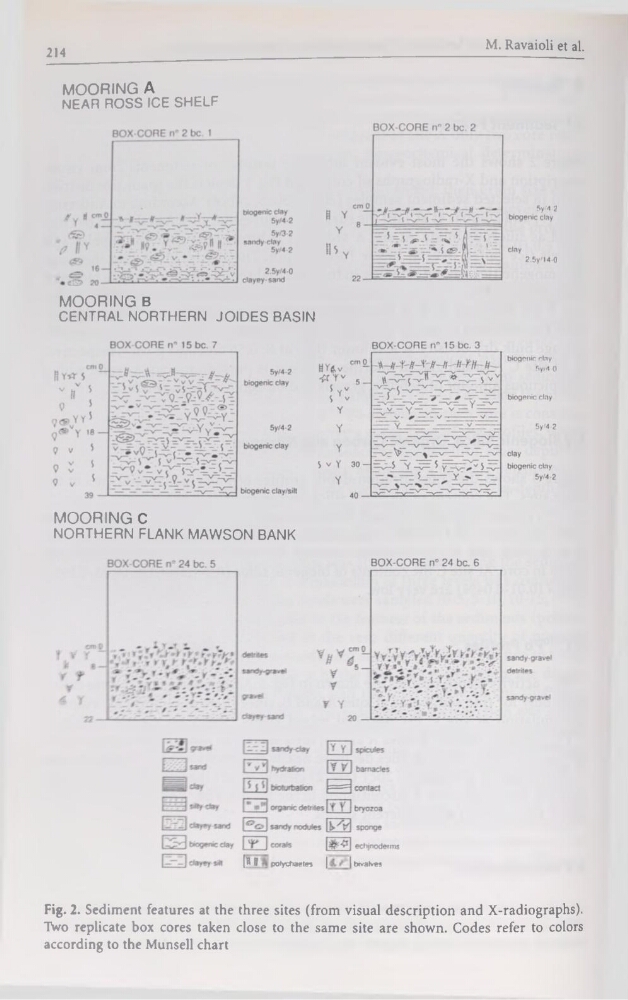

Fig. 2. Sédiment features at the three sites (from visual description and X-radiographs).
Two replicate box cores taken close to the same site are shown. Codes refer to colors
according to the Munsell chart
