228 Computational Modelling in Hydraulic and Coastal Engineering
influence of current velocities. After a simulation period of 120 days
it can be seen (Figure 8.8) that at the corner of the breakwater, where
current velocities are high, there is local scouring, while adjacent to
the scouring the eroded sediments were re-deposited. A close-up of the
sedimentation phenomenon is presented in Figure 8.9.
It should be emphasized that although the model depicts the location of the bed deformation, the predicted scouring and accretion
depths are very approximate and require calibration of the physical
40
35
30
25
20
15
10
5
10
20
30
40
50
60
70
–0.2
–0.15
–0.1
–0.05
0
0.05
0.1
0.15
0.2
0.25

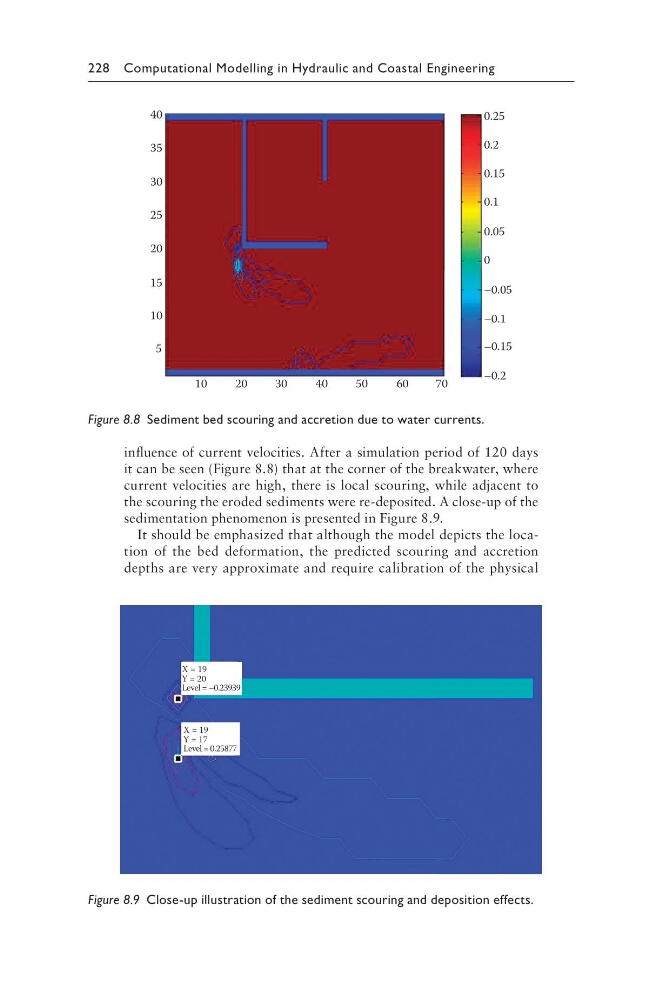

Figure 8.8 Sediment bed scouring and accretion due to water currents.
X = 19
Y = 20
Level = –0.23939
X = 19
Y = 17
Level = 0.25877
Figure 8.9 Close-up illustration of the sediment scouring and deposition effects.
