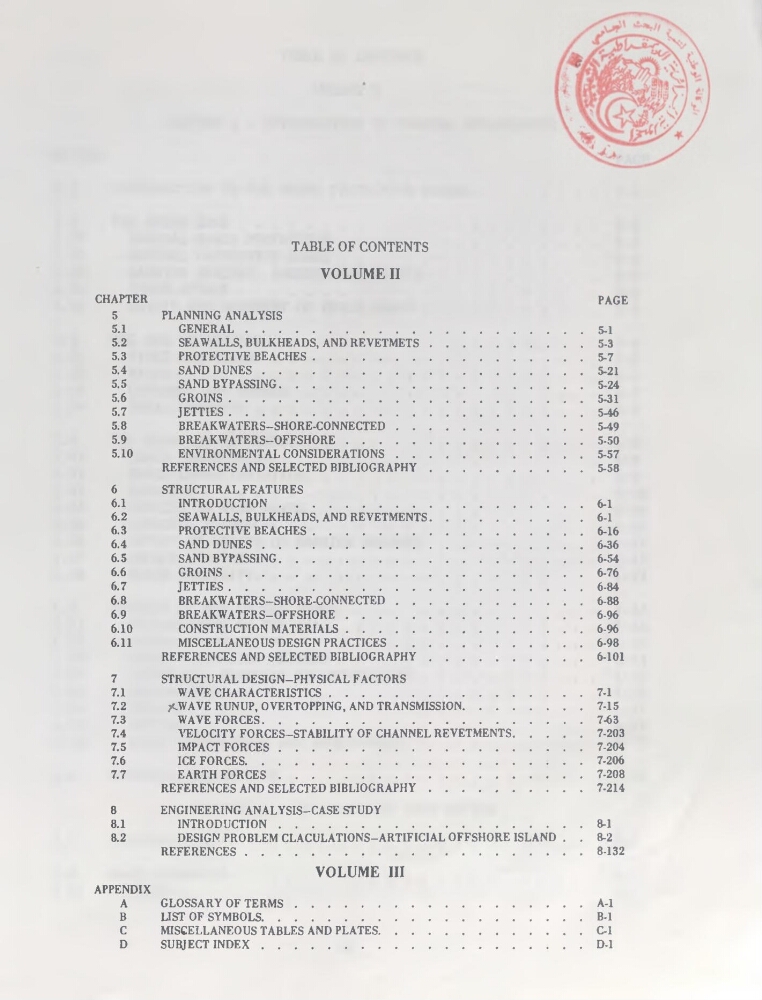

TABLE OF CONTENTS
VOLUME II
CHAPTER
PAGE
5
PLANNING ANALYSIS
5.1
GENERAL.................................................................................................................. 5-1
5.2
SEAWALLS, BULKHEADS, AND REVETMETS.................................................... 5-3
5.3
PROTECTIVE BEACHES........................................................................................... 5-7
5.4
SAND DUNES............................................................................................................ 5-21
5.5
SAND BYPASSING.......................................................................................................5-24
5.6
GROINS....................................................................................................................... 5-31
5.7
JETTIES....................................................................................................................... 5-46
5.8
BREAKWATERS-SHORE-CONNECTED............................................................... 5-49
5.9
BREAKWATERS-OFFSHORE................................................................................ 5-50
5.10
ENVIRONMENTAL CONSIDERATIONS............................................................... 5-57
REFERENCES AND SELECTED BIBLIOGRAPHY...................................................5-58
6
STRUCTURAL FEATURES
6.1
INTRODUCTION.......................................................................................................6-1
6.2
SEAWALLS, BULKHEADS, AND REVETMENTS.................................................... 6-1
6.3
PROTECTIVE BEACHES............................................................................................6-16
6.4
SAND DUNES............................................................................................................ 6-36
6.5
SAND BYPASSING.......................................................................................................6-54
6.6
GROINS........................................................................................................................6-76
6.7
JETTIES....................................................................................................................... 6-84
6.8
BREAKWATERS-SHORE-CONNECTED................................................................6-88
6.9
BREAKWATERS-OFFSHORE................................................................................ 6-96
6.10
CONSTRUCTION MATERIALS................................................................................ 6-96
6.11
MISCELLANEOUS DESIGN PRACTICES............................................................... 6-98
REFERENCES AND SELECTED BIBLIOGRAPHY...................................................6-101
7
STRUCTURAL DESIGN—PHYSICAL FACTORS
7.1
WAVE CHARACTERISTICS..................................................................................... 7-1
7.2
/.WAVE RUNUP, OVERTOPPING, AND TRANSMISSION............................................7-15
7.3
WAVE FORCES............................................................................................................ 7-63
7.4
VELOCITY FORCES—STABILITY OF CHANNEL REVETMENTS........................ 7-203
7.5
IMPACT FORCES...................................................................................................... 7-204
7.6
ICE FORCES..................................................................................................................7-206
7.7
EARTH FORCES.......................................................................................................7-208
REFERENCES AND SELECTED BIBLIOGRAPHY................................................... 7-214
8
ENGINEERING ANALYSIS-CASE STUDY
8.1
INTRODUCTION..................................................................................................... 8-1
8.2
DESIGN PROBLEM CLACULATIONS-ARTIFICIAL OFFSHORE ISLAND . . 8-2
REFERENCES.................................................................................................................8-132
VOLUME III
APPENDIX
A GLOSSARY OF TERMS..................................................................................................A-l
B
LIST OF SYMBOLS.............................................................................................................B-l
C
MISCELLANEOUS TABLES AND PLATES..................................................................... C-l
D
SUBJECT INDEX.............................................................................................................D-l
