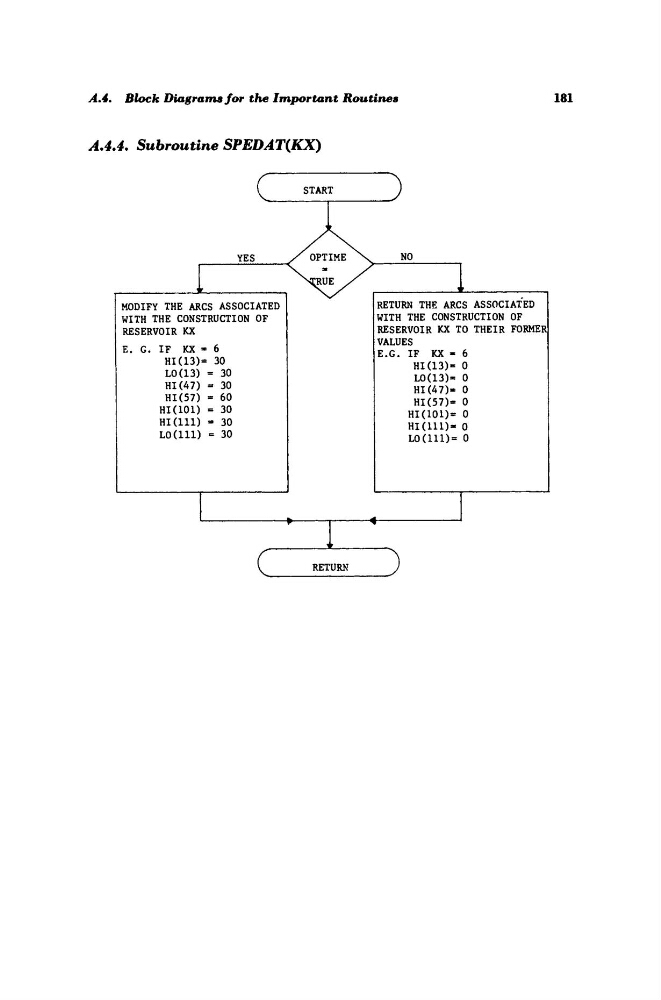

A.4. Block Diagrams for the Important
Routines
181
AAA.
Subroutine
SPEDAT(KX)
c
START
YES
OPTIME
\
NTRUE
/
NO
MODIFY THE ARCS ASSOCIATED
WITH THE CONSTRUCTION OF
RESERVOIR KX
E. G. IF
KX = 6
HI(13)=
30
L0(13) = 30
HI(47) = 30
HI(57) = 60
HI(101) = 30
HI (111) = 30
LO(lll) = 30
RETURN THE ARCS ASSOCIATED
WITH THE CONSTRUCTION OF
RESERVOIR KX TO THEIR FORMER
VALUES
E.G. IF
KX * 6
HI(13)= 0
LO(13)« 0
HI(47)« 0
HI(57)« 0
HI(101)« 0
HI(111)= 0
L0(111)= 0
c
RETURN
