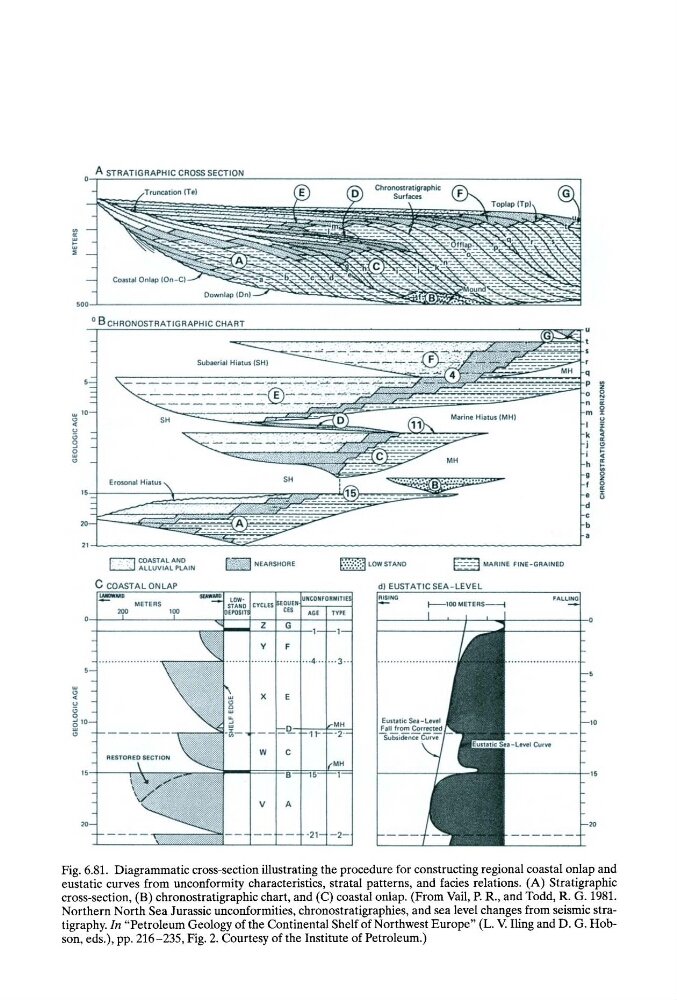

Fig. 6.81. Diagrammatic cross-section illustrating the procedure for constructing regional coastal onlap and
eustatic curves from unconformity characteristics, stratal patterns, and facies relations. (A) Stratigraphic
cross-section, (B) chronostratigraphic chart, and (C) coastal onlap. (From Vail, P. R., and Todd, R. G. 1981.
Northern North Sea Jurassic unconformities, chronostratigraphies, and sea level changes from seismic stratigraphy. In "Petroleum Geology of the Continental Shelf of Northwest Europe" (L. V. Iling and D. G. Hobson, eds.), pp. 216-235, Fig. 2. Courtesy of the Institute of Petroleum.)
